PUMP - ENGINE OIL

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
Pump - engine oil – Remove camshaft timing belt. See this section.

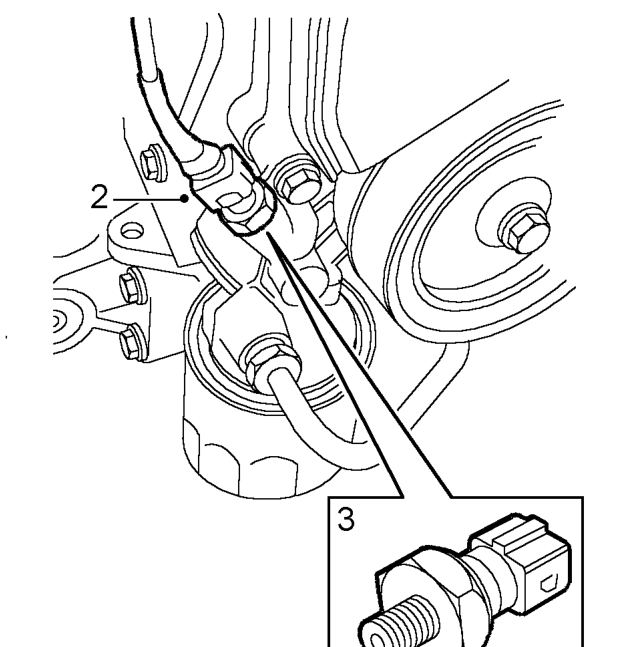

  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.
Pump - engine oil – Remove oil pressure switch.

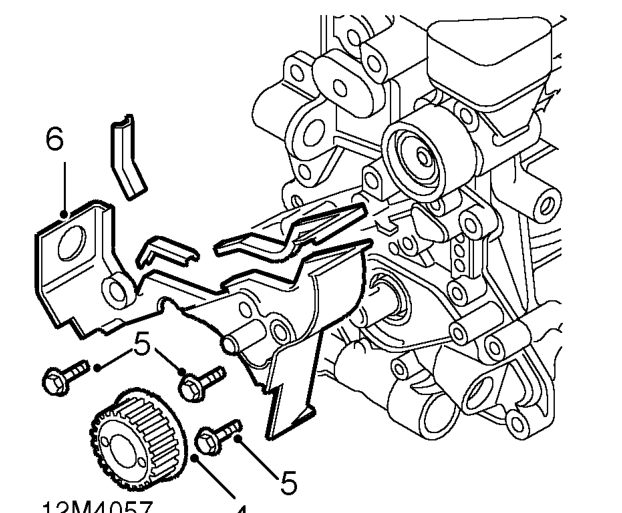

  1. Remove timing gear from crankshaft.
  2. Remove 3 bolts securing camshaft timing belt lower cover backplate.
  3. Remove backplate with seal.
  4. Remove oil filter.
Pump - engine oil – Remove oil filter.

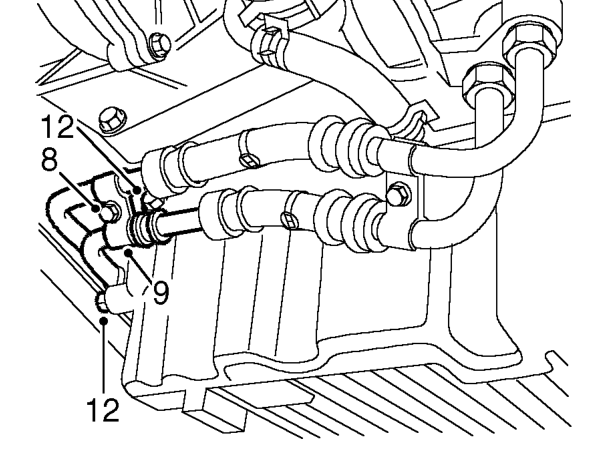

  1. Remove bolt securing clamp to oil cooler pipes.
  2. Remove clamp.
  3. Remove 2 bolts securing oil cooler pipe clips to sump.
