Sump - engine

19. Connect turbo oil feed pipe to pump and tighten union nut to 25 Nm.
20. Connect oil cooler pipe to pump and tighten union nut to 25 Nm.
21. Align pipe clips to sump and secure with bolts.
22. Connect oil cooler pipe to pump and tighten union nut to 25 Nm.
23. Fit clamp to oil cooler pipes and secure with bolt.
24. Lubricate oil filter seal with clean engine oil.
25. Fit oil filter and tighten to 17 Nm.
26. Clean oil pressure switch, apply Loctite sealant 242 to thread and tighten switch to 15 Nm.
27. Connect multiplug to oil pressure switch.
28. Clean crankshaft timing gear.
29. Fit timing gear to crankshaft.
30. Fit camshaft timing belt. See this section.
31. Check and top up engine oil. See MAINTENANCE.

SUMP - ENGINE

Service repair no - 12.60.44

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove oil filter. See MAINTENANCE.
4. Drain engine oil. See MAINTENANCE.

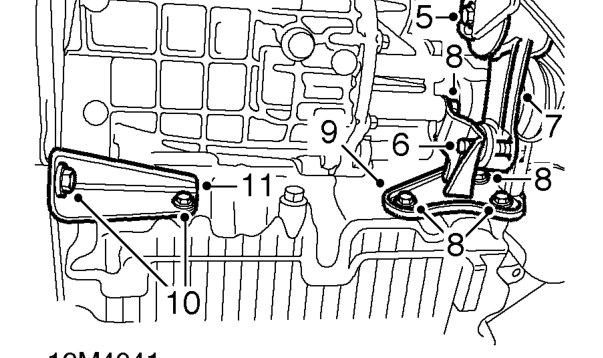

5. Loosen bolt, engine lower tie rod to sub frame.
6. Remove bolt securing engine lower tie rod to bracket on sump.
7. Release tie rod from bracket.
8. Remove 4 bolts securing tie rod bracket to IRD unit and engine sump.
9. Remove tie rod bracket.
10. Remove 2 bolts securing support bracket to gearbox and sump.
11. Remove support bracket.
12. Position container to collect spillage from vacuum pump and oil cooler pipe unions.
