Models with air conditioning

Refit

1. Fit timing gear upper cover fit bolts and tighten to 5 Nm.
2. Fit engine mounting bracket and tighten bolts securing bracket to engine to 120 Nm.
3. Fit upper tie bar to engine mounting bracket and tighten both bolts securing tie bar to 80 Nm.
4. Remove jack from under engine.
5. Fit PAS hose bracket to engine mounting stud and tighten nut to 80 Nm.

Models with air conditioning

6. Fit air conditioning hose clip to PAS hose support bracket and secure with bolt.

All models

7. Fit underbelly panel. See BODY, Exterior fittings.
8. Fit engine acoustic cover. See ENGINE, Repairs.

COVER - TIMING GEAR - LOWER

Service repair no - 12.65.43

Remove

1. Remove crankshaft pulley. See this section.
2. Remove camshaft timing gear upper cover. See this section.

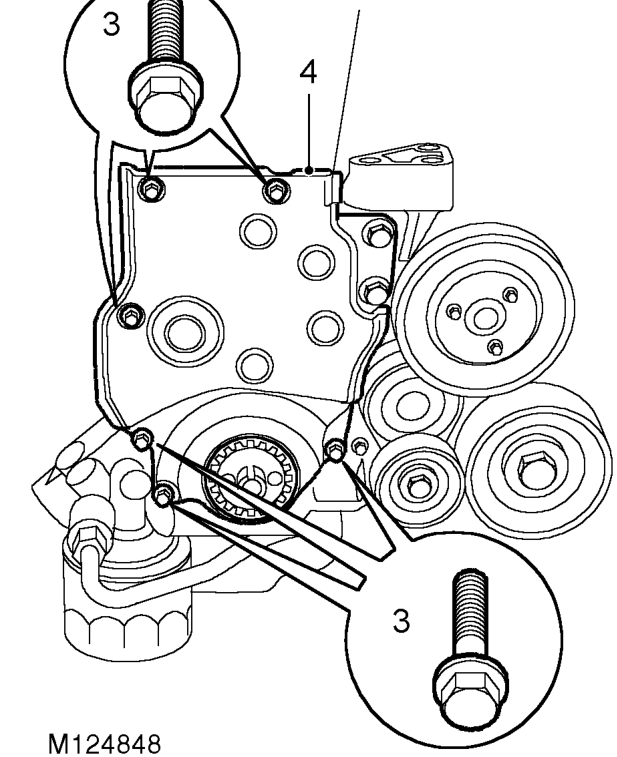

3. Remove 6 bolts securing lower cover.
4. Remove lower cover.

Refit

1. Fit lower cover to engine and tighten bolts to 5 Nm.
2. Fit timing gear upper cover. See this section.
3. Fit crankshaft pulley. See this section.
