Engine - L SeriesGasket - cylinder head

GASKET - CYLINDER HEAD

Service repair no - 12.29.02

Remove

  1. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  2. Remove camshaft timing belt. See this section.
  3. Remove FIP timing belt. See this section.
  4. Remove fuel injection pipes. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  5. Remove inlet and exhaust manifold gasket. See MANIFOLD & EXHAUST SYSTEMS - ’L’ SERIES, Repairs.
  6. Place a suitable support beneath the engine and gearbox and disconnect the chains.

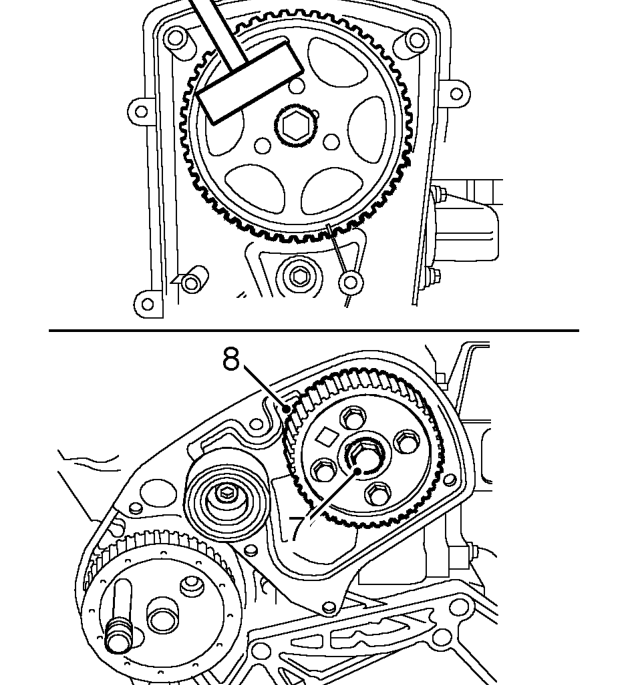

Gasket - cylinder head – Place a suitable support beneath the engine and gearbox and disconnect the chains.
  1. Use LRT-12-132 to hold camshaft drive gear, remove and discard FIP belt drive gear bolt.
  2. Remove FIP belt drive gear.

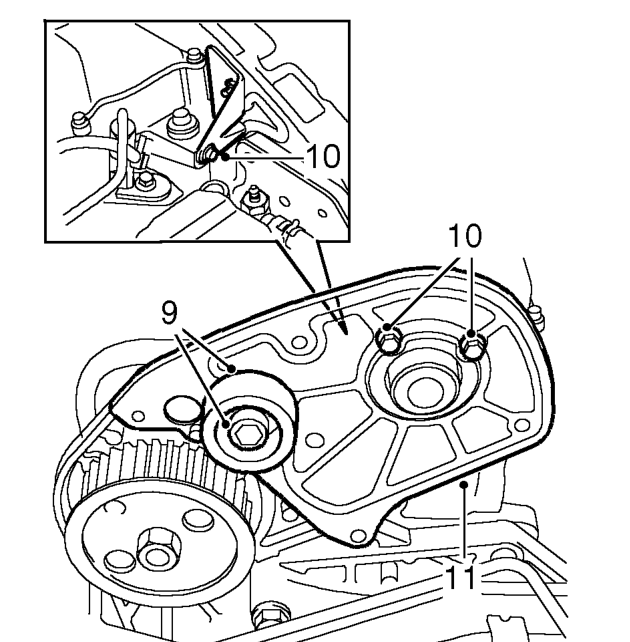

Gasket - cylinder head – Remove FIP belt drive gear.
  1. Remove Allen bolt securing FIP drive belt tensioner and remove tensioner.
  2. Remove 3 bolts securing FIP drive belt rear cover.
  3. Remove rear cover.

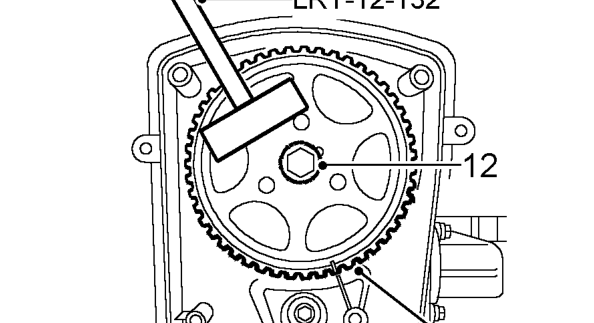

Gasket - cylinder head – Remove rear cover.
  1. Use LRT-12-132 to hold camshaft drive gear, remove and discard retaining bolt.
  2. Remove camshaft drive gear.
