Engine - L SeriesCrankshaft pulley · page 1 of 3

CRANKSHAFT PULLEY

Service repair no - 12.21.01

Remove

  1. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  2. Remove RH front road wheel.
Crankshaft pulley – Remove RH front road wheel.

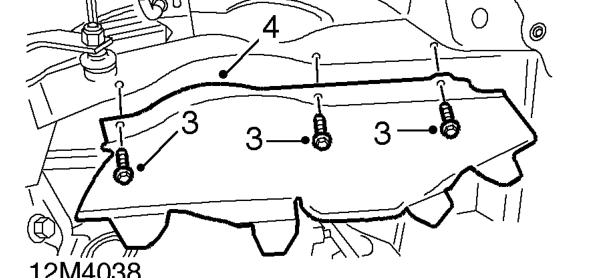

  1. Remove 3 bolts securing RH splash shield.
  2. Remove splash shield.
  3. Remove camshaft timing gear upper cover. See this section.
Crankshaft pulley – Remove camshaft timing gear upper cover. See this section.

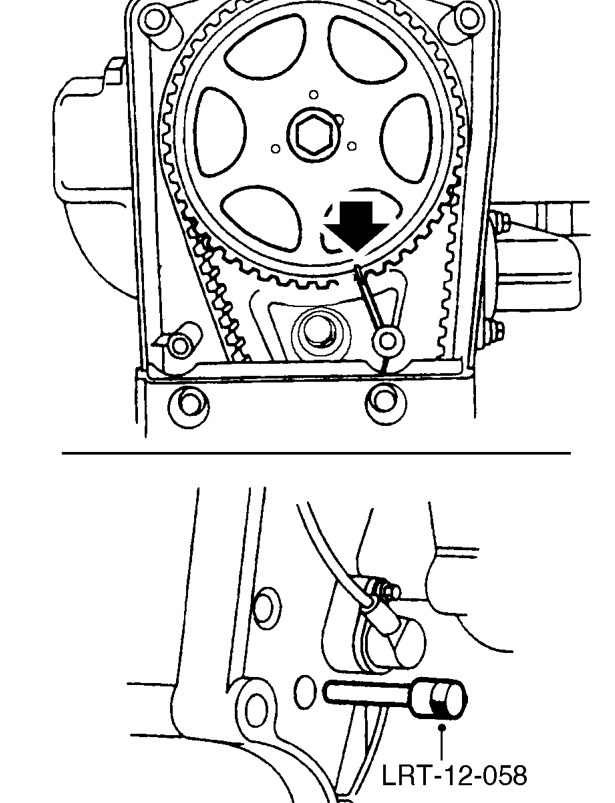

  1. Insert timing pin LRT-12-058 through hole in gearbox mounting plate, hold pin in contact with flywheel and using assistance, rotate crankshaft clockwise until pin can be felt to enter hole in flywheel.

CAUTION: Never use the camshaft timing gear, gear retaining bolt, or timing belt to rotate the engine.

  1. Check that timing marks on camshaft gear and back cover are aligned.
Crankshaft pulley – Check that timing marks on camshaft gear and back cover are aligned.
  1. Remove bolt securing crankshaft pulley.
  2. Remove crankshaft pulley.
