Engine - L SeriesGasket - camshaft cover
  1. Fit camshaft drive belt. See this section.
  2. Fit FIP drive belt. See this section.
  3. Connect battery earth lead.
  4. Refill cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.

GASKET - CAMSHAFT COVER

Service repair no - 12.29.40

Remove

  1. Remove plenum chamber. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

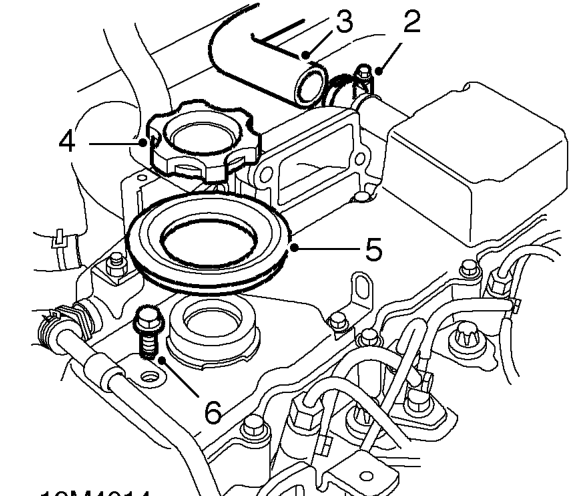

Gasket - camshaft cover – Remove plenum chamber. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Slacken clip securing engine breather hose to camshaft cover.
  2. Disconnect engine breather hose from camshaft cover.
  3. Remove oil filler cap from camshaft cover.
  4. Remove seal from oil filler neck.
  5. Remove bolt securing brake servo vacuum pipe to camshaft cover.

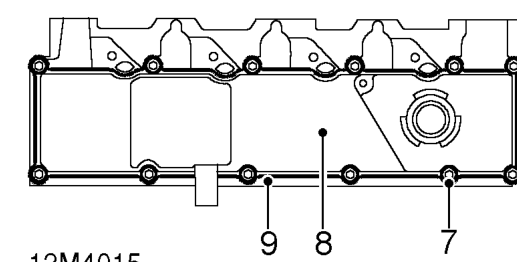

Gasket - camshaft cover – Remove bolt securing brake servo vacuum pipe to camshaft cover.
  1. Remove 12 bolts securing camshaft cover.
  2. Remove camshaft cover.
  3. Remove and discard camshaft cover gasket.
