Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Models fitted with air conditioning.

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Models fitted with air conditioning.
Engine - L SeriesModels fitted with air conditioning. · page 1 of 4
Diagram

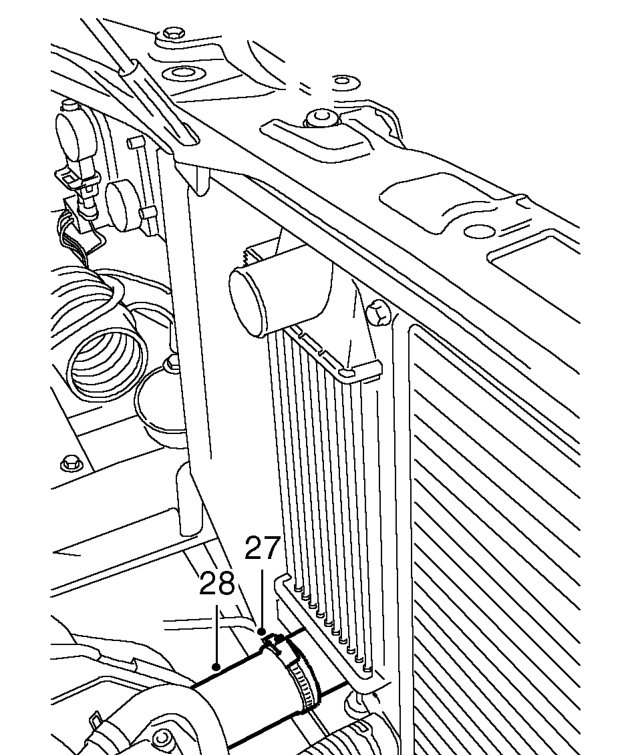

  1. Loosen clip securing turbocharger hose to intercooler.
  2. Disconnect hose from intercooler.

Models fitted with air conditioning.

Models fitted with air conditioning. – Disconnect hose from intercooler.

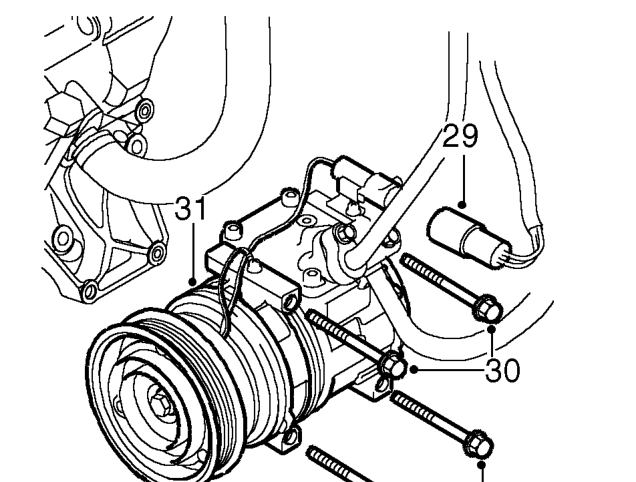

  1. Disconnect multiplug from compressor.
  2. Remove 4 bolts securing compressor to water pump housing.
  3. Release compressor from dowels and tie aside.

All models.

  1. Remove battery carrier. See ELECTRICAL, Repairs.
All models. – Remove battery carrier. See ELECTRICAL, Repairs.

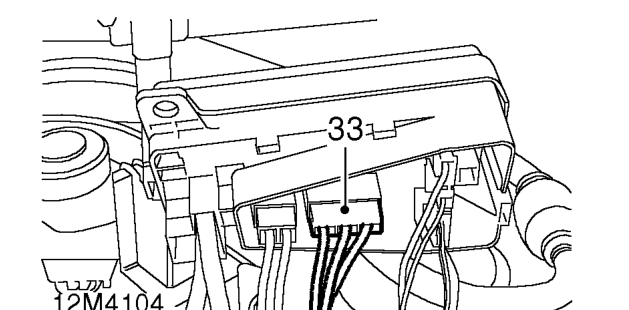

  1. Disconnect engine harness multiplug from fuse box.
