Models fitted with air conditioning. (page 2 of 4)

Make

Land Rover

Model

Freelander Workshop Manual

Year

1998–2000

Section

Repairs

Engine - L SeriesModels fitted with air conditioning. · page 2 of 4

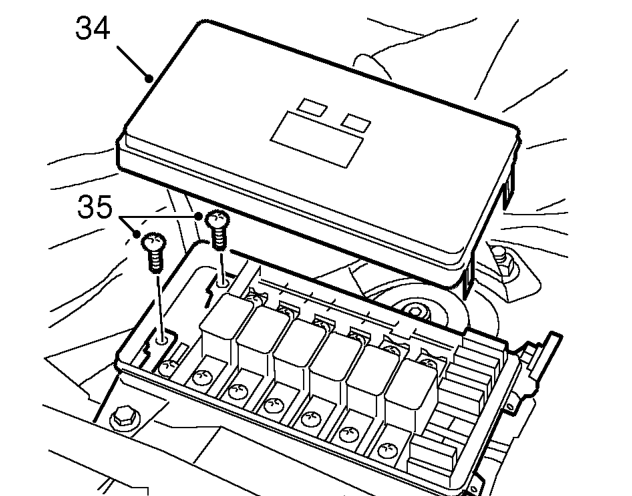

34. Remove fuse box cover.
35. Remove 2 screws securing positive leads and release positive leads from fuse box.

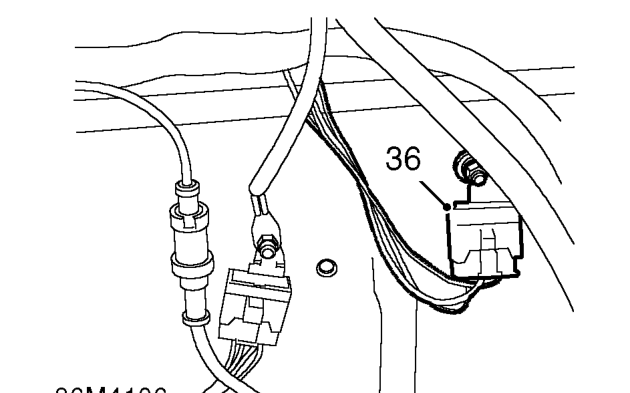

36. Disconnect multiplug from earth lead header.

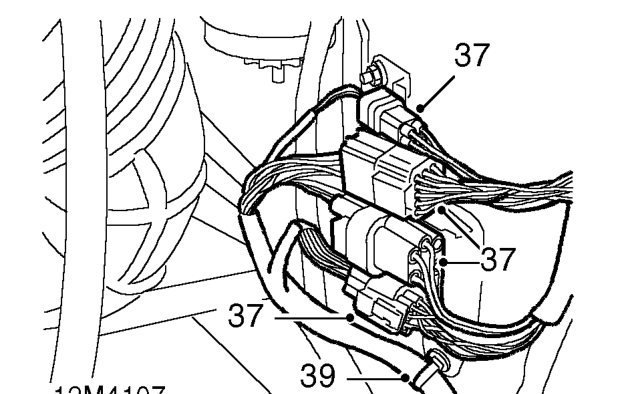

37. Disconnect 4 engine harness multiplugs from main harness.
38. Release engine harness multiplug from bracket.
39. Release harness securing clip from bracket.

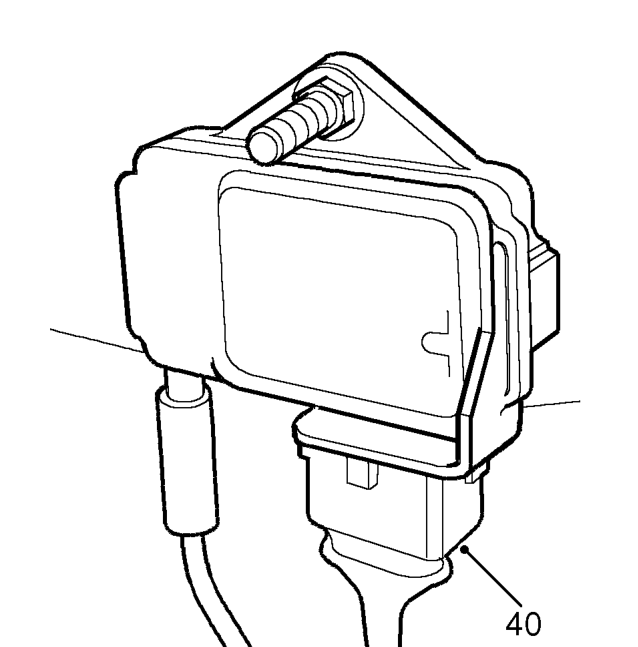

40. Disconnect multiplug from MAP sensor.

06 Engine
