Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Models fitted with air conditioning. (page 4 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesModels fitted with air conditioning. · page 4 of 4
Diagram

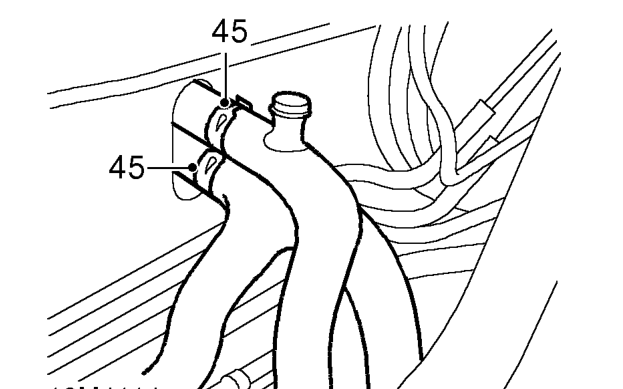

  1. Release clip and disconnect 2 coolant hoses from heater matrix.
Release clip and disconnect 2 coolant hoses from heater matrix.

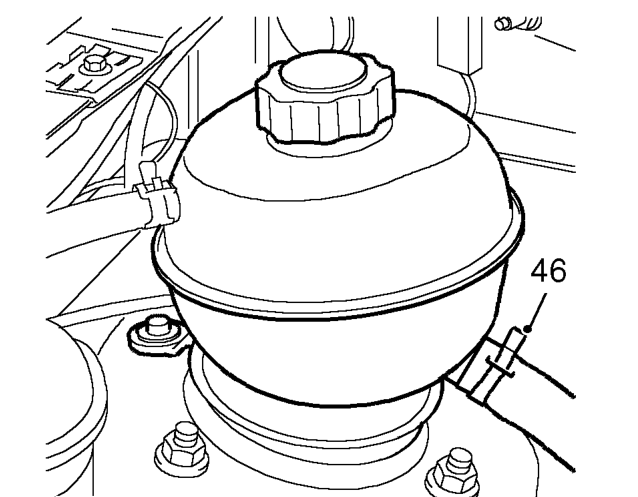

  1. Release clip and disconnect outlet hose from expansion tank.
Release clip and disconnect outlet hose from expansion tank.

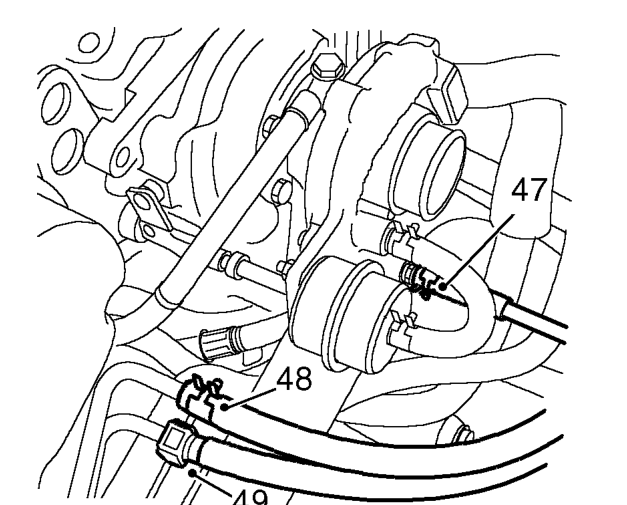

  1. Release clip and disconnect pressure sensing hose from turbocharger.
  2. Release clip and disconnect feed hose from fuel rail.
  3. Release return hose from fuel rail.
Release return hose from fuel rail.

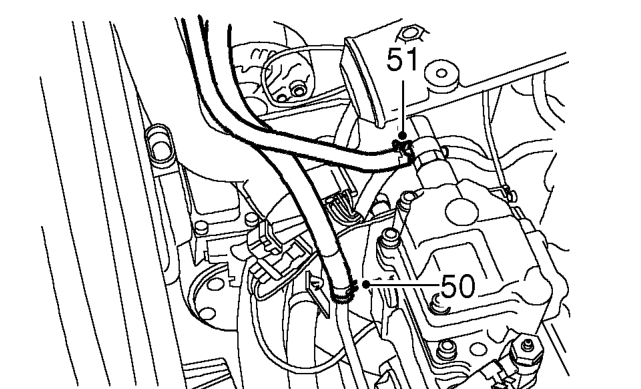

  1. Release clip and disconnect fuel cooler hose from fuel rail.
  2. Release clip and disconnect fuel cooler hose from FIP.

CAUTION: Plug the connections.
