Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Models fitted with air conditioning. (page 3 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesModels fitted with air conditioning. · page 3 of 4
Diagram

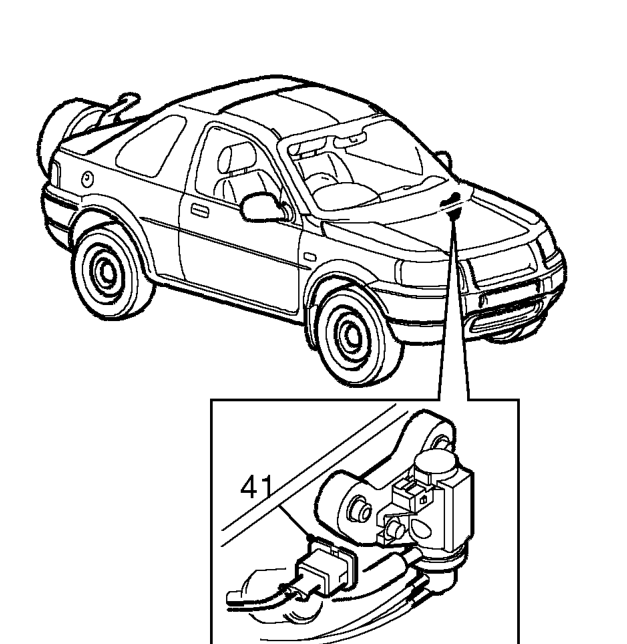

  1. Disconnect multiplug from EGR modulator valve.
Disconnect multiplug from EGR modulator valve.

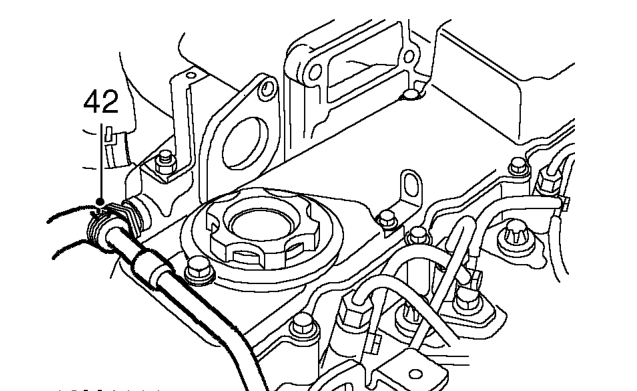

  1. Release clip and disconnect brake servo hose from pipe at camshaft cover.
Release clip and disconnect brake servo hose from pipe at camshaft cover.

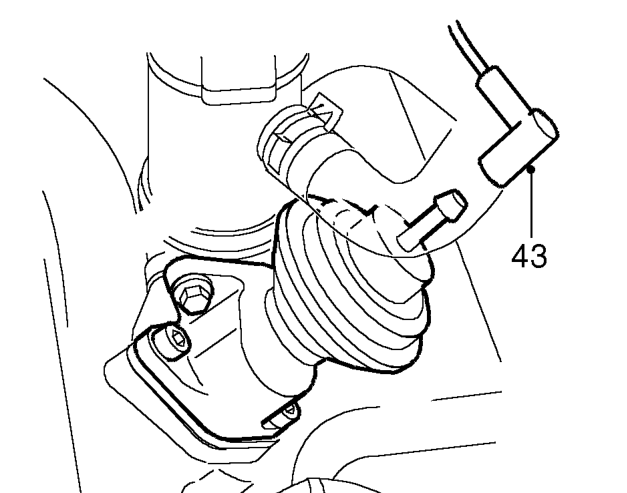

  1. Disconnect vacuum pipe from EGR valve.
Disconnect vacuum pipe from EGR valve.

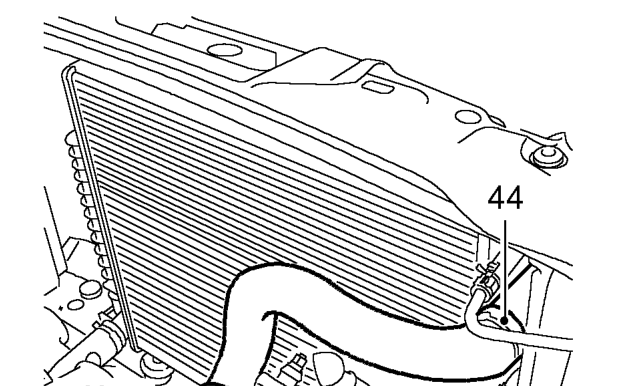

  1. Release clip and disconnect coolant top hose from radiator.
