Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Mounting - engine - RH

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Mounting - engine - RH
Engine - L SeriesMounting - engine - RH

MOUNTING - ENGINE - RH

Service repair no - 12.45.12

Remove

  1. Remove engine acoustic cover. See ENGINE, Repairs.
  2. Remove underbelly panel. See BODY, Exterior fittings.

Models with air conditioning.

Models with air conditioning. – Remove underbelly panel. See BODY, Exterior fittings.

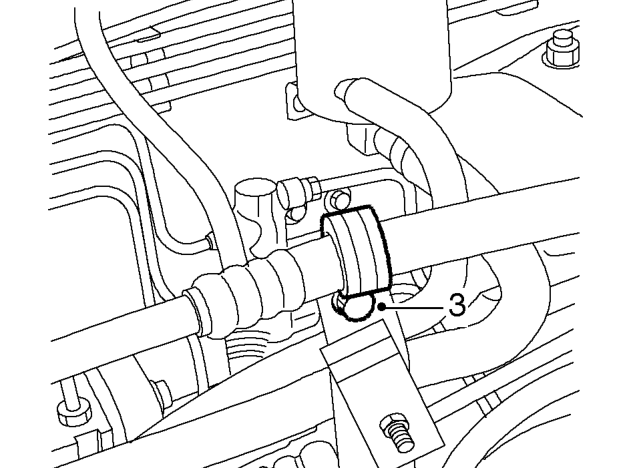

  1. Remove bolt securing air conditioning hose clip to PAS hose support bracket.

All models.

  1. Use a jack to support engine under sump.

CAUTION: Use a block of wood on jack to protect the sump.

All models. – Use a jack to support engine under sump.

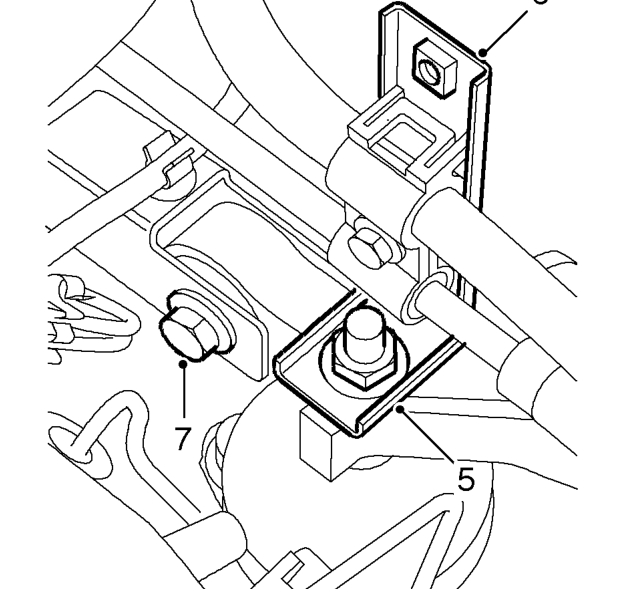

  1. Remove nut securing PAS hose support bracket to engine mounting stud.
  2. Release PAS hose bracket from mounting stud.
  3. Remove bolt securing engine upper tie bar to engine mounting bracket.
