FIP TIMING BELT COVER

Service repair no - 12.65.53

Remove

  1. Remove engine acoustic cover. See this section.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

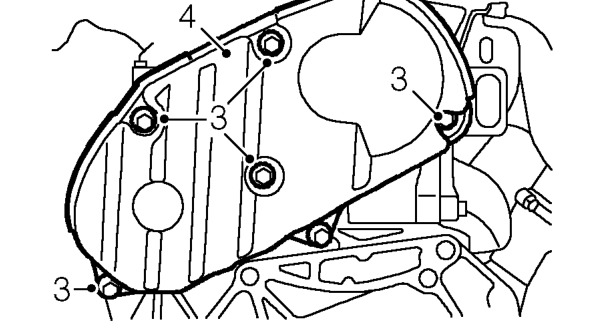

Fip timing belt cover – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Remove 6 bolts securing FIP timing belt cover to back plate.
  2. Remove timing belt cover.

Refit

  1. Fit FIP timing belt cover, fit bolts and tighten to 5 Nm.
  2. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  3. Fit engine acoustic cover. See this section.

BELT - TIMING - FUEL INJECTION PUMP (FIP)

Service repair no - 12.65.51

Remove

  1. Remove FIP timing belt cover. See this section.
  2. Remove camshaft timing gear upper cover. See this section.

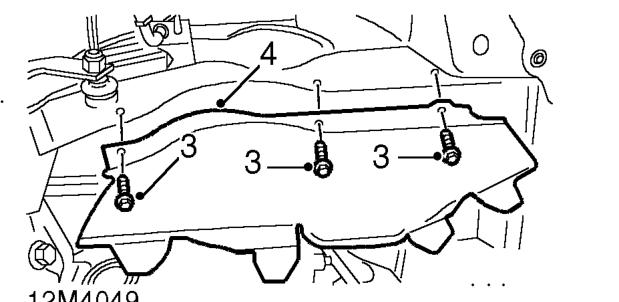

Belt - timing - fuel injection pump (fip) – Remove camshaft timing gear upper cover. See this section.
  1. Remove 3 bolts securing RH splash shield.
  2. Remove splash shield.

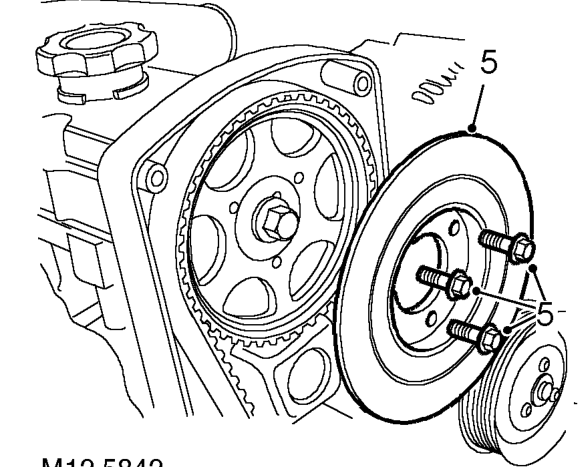

Belt - timing - fuel injection pump (fip) – Remove splash shield.
  1. Remove and discard 3 Torx screws securing damper to camshaft gear, remove damper.
