Fip timing belt cover (page 5 of 6)

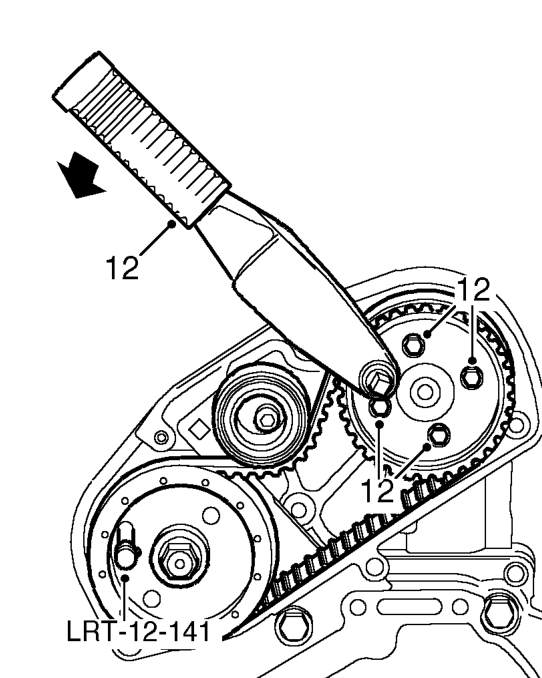

12. Fit torque wrench to square hole in FIP timing belt drive gear as shown and apply an anti-clockwise (as viewed from rear of engine) torque loading of 25 Nm. Maintain loading and tighten 4 bolts securing gear to 25 Nm.

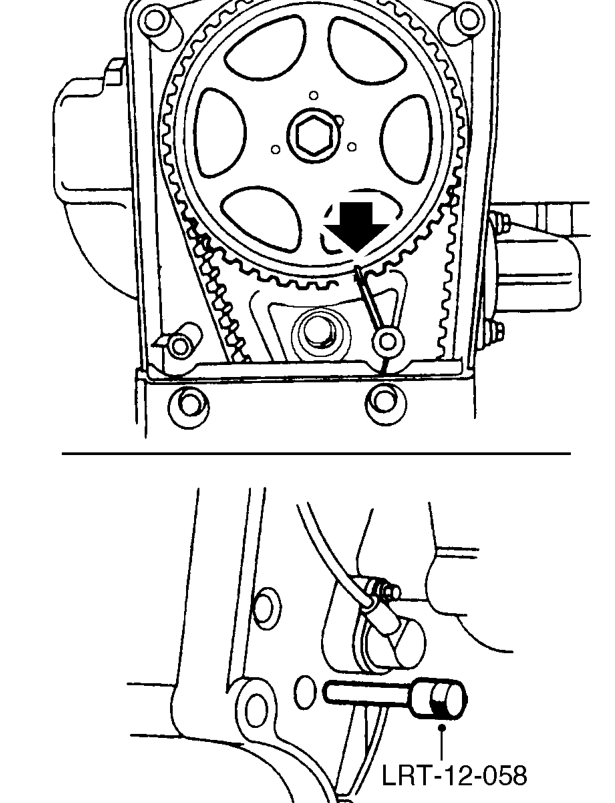

13. Remove FIP gear locking pin LRT-12-141 and timing pin LRT-12-058.

14. Rotate crankshaft clockwise 2 complete revolutions and fit timing pin LRT-12-058.

CAUTION: Ensure pin is fully inserted in hole in flywheel.

15. Check that camshaft gear timing mark is aligned with mark on back cover.
16. Insert locking pin LRT-12-141 through FIP drive gear and into hole in adapter plate.

CAUTION: To ensure FIP timing is correct, locking pin must be a sliding fit. If pin is a tight fit, adjustment procedure must be repeated.
