Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Pump - engine oil (page 2 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesPump - engine oil · page 2 of 3

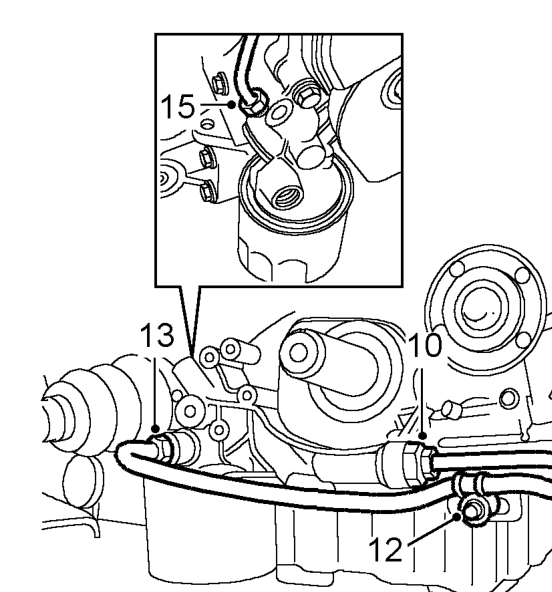

Diagram
  1. Remove union nuts and disconnect pipes from oil pump.
  2. Remove and discard ’O’ ring.
  3. Remove union nut and disconnect turbo oil feed pipe from pump.
  4. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

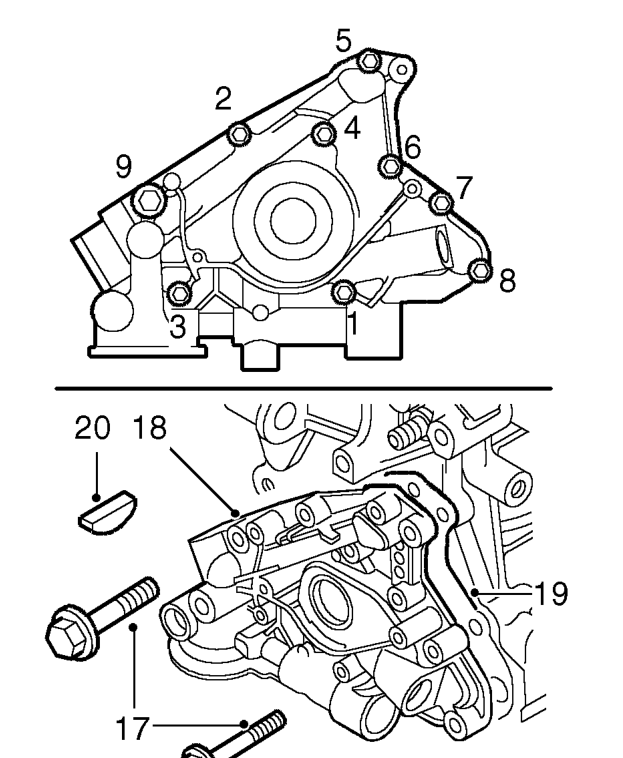

Remove and discard ’O’ ring.
  1. Using sequence shown, remove 1, M10 and 8, M6 bolts securing oil pump to cylinder block. Note position of longest bolt at position 9.
  2. Remove oil pump.
  3. Remove and discard gasket.
  4. Remove key from crankshaft.
