Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Seal - camshaft - rear (page 2 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesSeal - camshaft - rear · page 2 of 3
Diagram

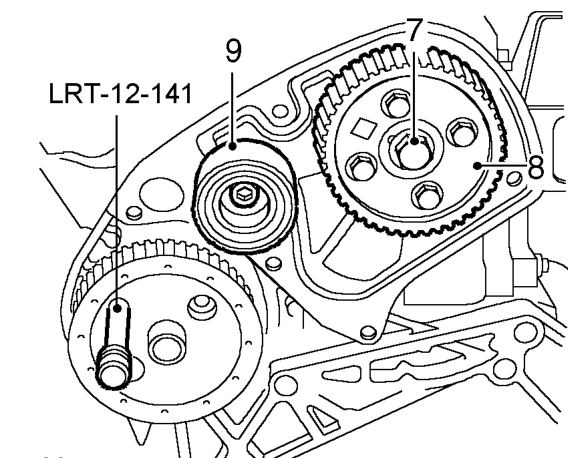

  1. Remove but do not discard bolt securing FIP belt drive gear.
  2. Remove FIP belt drive gear.
  3. Remove Allen bolt securing FIP drive belt tensioner and remove tensioner.
Remove Allen bolt securing FIP drive belt tensioner and remove tensioner.

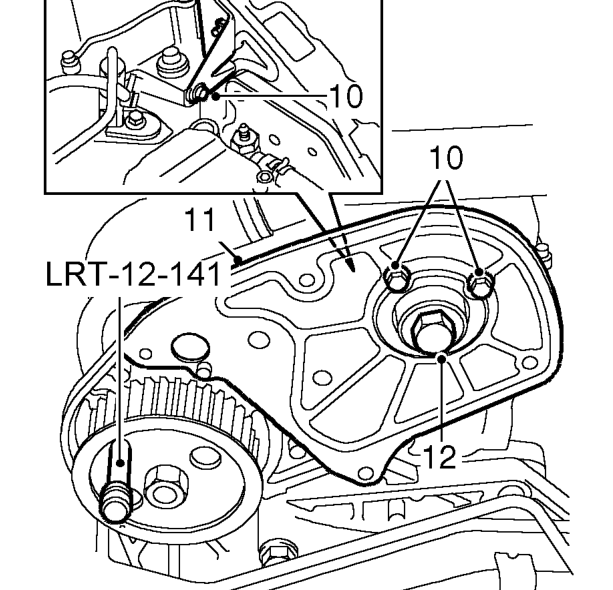

  1. Remove 3 bolts securing FIP drive belt rear cover.
  2. Remove rear cover.
  3. Fit but do not tighten the old FIP gear retaining bolt.
Fit but do not tighten the old FIP gear retaining bolt.

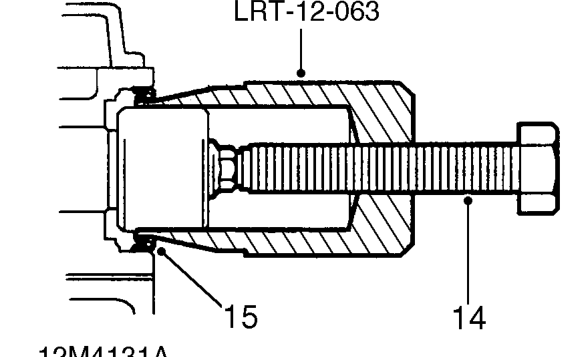

  1. Fit and tighten seal remover tool LRT-12-063 to camshaft seal.
  2. Tighten seal remover centre screw to remove camshaft seal.
  3. Remove seal remover LRT-12-063, remove and discard seal from seal remover tool.
  4. Remove and discard FIP gear retaining bolt.
