L322 Range Rover Service Procedures
PANEL REPAIRS
REPAIRS
-25
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance

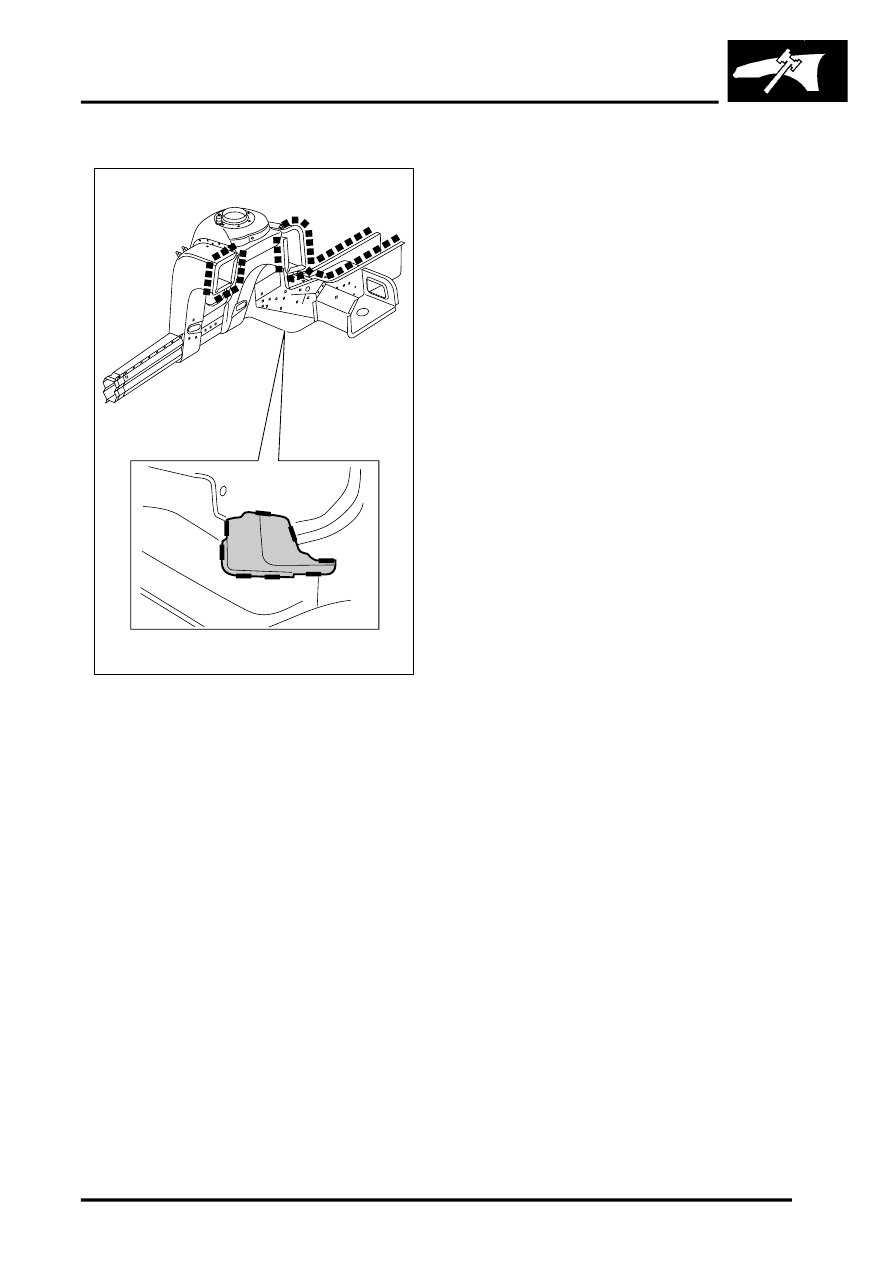

with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown. The panel shaded in the illustration
must also be removed in this procedure.
Refit
1. Fit insulation pads to dash lower.
2. Position front carpet.
3. Fit fascia carrier.
4. Fit heatshield to tunnel.
5. Fit and secure wiring harnesses.
6. Fit fuel and brake pipes.
7. Fit air spring assembly.
FRONT SUSPENSION, REPAIRS, Air
8. RH side: Fit air suspension reservoir.
FRONT SUSPENSION, REPAIRS, Air
9. LH side: Fit fuel filter.
10. LH side: Fit battery carrier.
11. Fit fuel pipes to sidemember.
12. Fit ABS modulator.
BRAKES, REPAIRS, ABS Modulator
13. Fit brake servo.
14. Fit alternator.
15. Fit front wheel arch liner.
16. Fit front wing.
17. Fit PAS pipes.
18. Fit plenum chamber drain tube.
19. Fit windscreen lower finisher.
20. Fit throttle pedal.
21. Fit engine.
22. Diesel models: Fit FBH.
23. Diesel models: Fit FBH fuel pump.
24. Diesel models: Position and connect
intercooler pipes.
25. Fit A/C pipes to sidemember.
26. RH side: Fit gearbox fluid cooler.
27. LH side: Fit radiator expansion tank.
28. Fit air intake plenum.
29. LH side: Fit windscreen washer reservoir.
30. Fit radiator.
31. Fit front armature.
32. Fit front bumper assembly.
33. Fit underbelly panel.
34. Recharge A/C system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
35. Connect alternator.
36. Connect battery earth lead.
M77 2236
