12

ENGINE

NEW RANGE ROVER

14

REPAIR

Manual Vehicles:

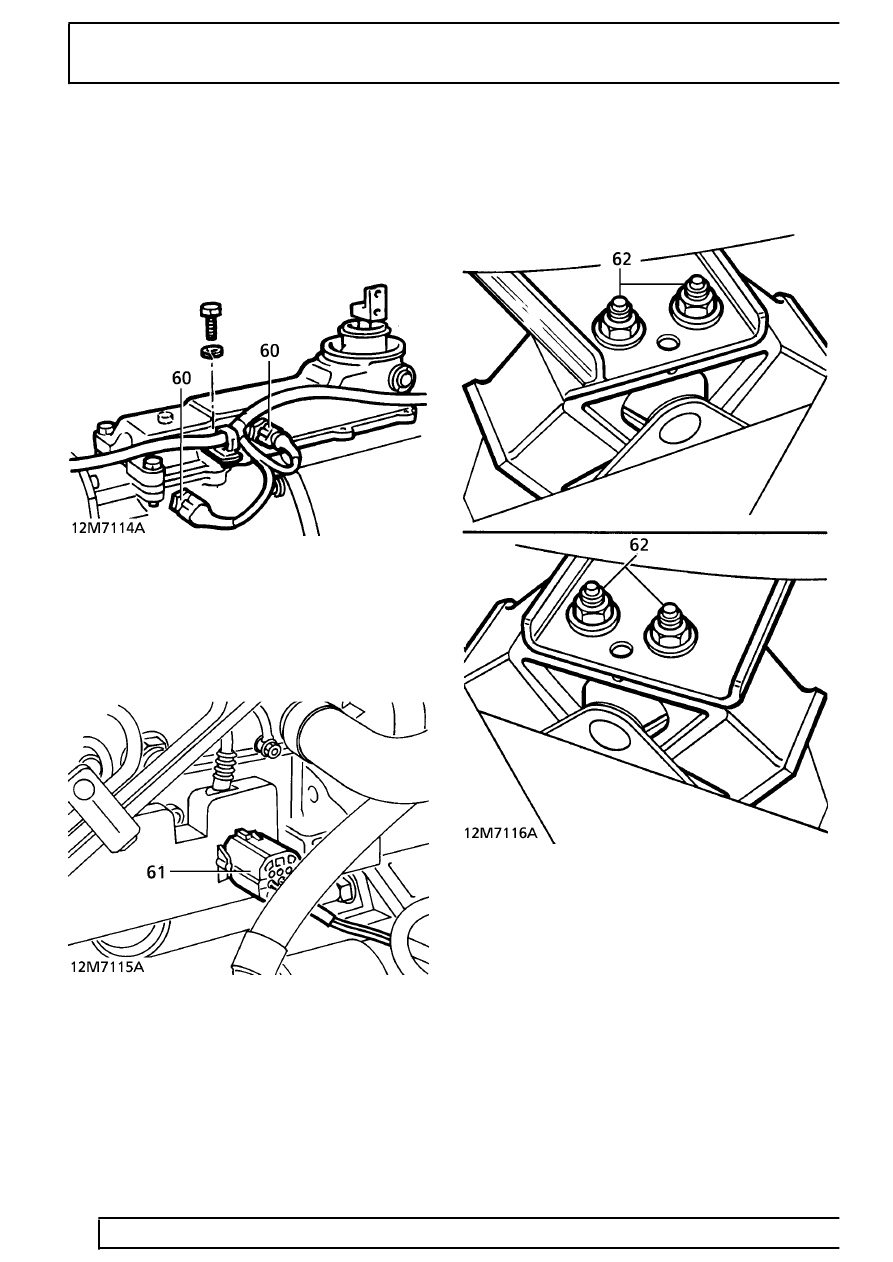

60. Disconnect multiplugs from reverse and neutral

switches. Remove bolt securing harness bracket
to gearbox. Release harness from clips on
gearbox brackets.

All Vehicles:

61. Disconnect engine harness to gearbox harness

multiplug. Position harness aside.

62. Remove 4 nuts securing each engine mount to

engine bracket.
