Range Rover P38
44
AUTOMATIC GEARBOX
NEW RANGE ROVER
28
REPAIR
Refit
5. Clean pump housing and mating face on
intermediate plate with lint free cloth.
6. Lubricate new ’O’ ring with transmission fluid and
fit to pump housing.
7. Position pump locating dowel into intermediate
plate.
8. Align fluid pump to dowel and position in
intermediate plate.
9. Fit bolts and tighten in a diagonal sequence to
10 Nm (7lbf.ft).

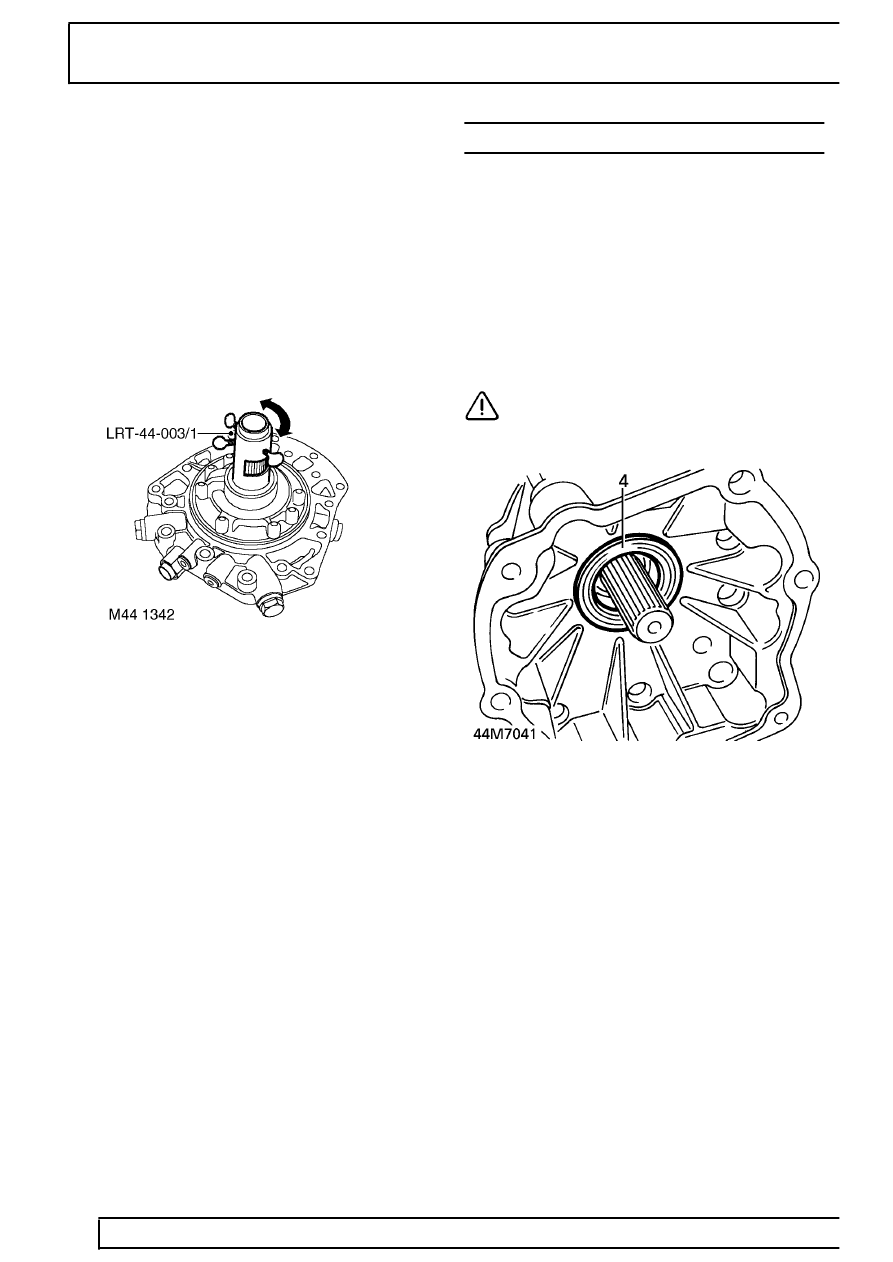

10. Position LRT-44-003/1 into pump and check that
the pump rotors turn freely.
11. Fit intermediate plate gasket.
See this section.
OUTPUT SHAFT SEAL
Service repair no - 44.20.18
Remove
1. Disconnect battery negative lead.
2. Remove transfer box.
See TRANSFER BOX,
Repair.
3. Drain fluid from gearbox.
See SECTION 10,
Maintenance.
4. Remove seal from gearbox casing using a
suitable lever.
CAUTION: Ensure location does not
become damaged as seal is levered from
casing.
Refit
5. Clean seal location and running surface on
transfer gearbox input shaft.
6. Lubricate seal lip with clean transmission fluid.
7. Fit seal to gearbox casing using LRT-44-001
8. Fit transfer box.
See TRANSFER BOX, Repair.
9. Reconnect battery negative lead.
10. Replenish transmission fluids.
See
LUBRICANTS, FLUIDS AND CAPACITIES,
Information.
