Range Rover P38
ZF AUTO
29
REPAIR

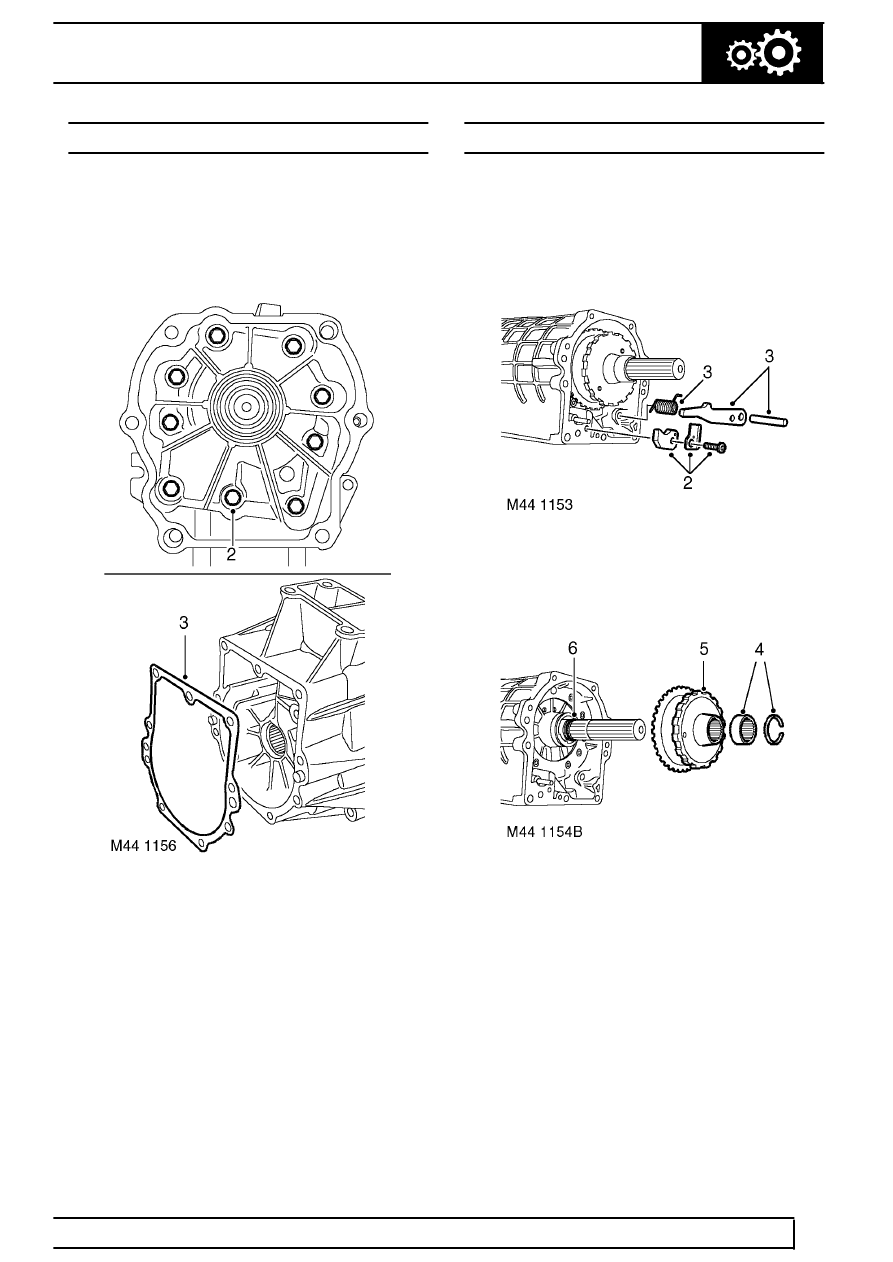

GASKET - REAR EXTENSION HOUSING
Service repair no - 44.20.19
Remove
1. Remove transfer gearbox.
See TRANSFER
BOX, Repair.
2. Remove 9 bolts securing rear extension housing
to gearbox case and remove housing.
3. Remove and discard gasket.
Refit
4. Clean rear extension and mating face, dowel
and dowel holes.
5. Fit new gasket to gearbox case.
6. Fit rear extension housing and tighten bolts to
25
Nm (18 lbf.ft).
7. Fit transfer gearbox.
See TRANSFER BOX,
Repair.
PARKING PAWL ASSEMBLY
Service repair no - 44.28.07
Remove
1. Remove rear extension housing gasket.
See
this section.
2. Remove Torx screw and discard, lift off parking
pawl guide and guide plate.
3. Remove ratchet, spring and pivot pin.
4. Diesel and 4.6 models:Remove circlip and
bearing track from output shaft.
5. Remove park lock gear.
6. Remove and discard ’O’ ring from output shaft.
