Range Rover P38
ZF AUTO
35
REPAIR

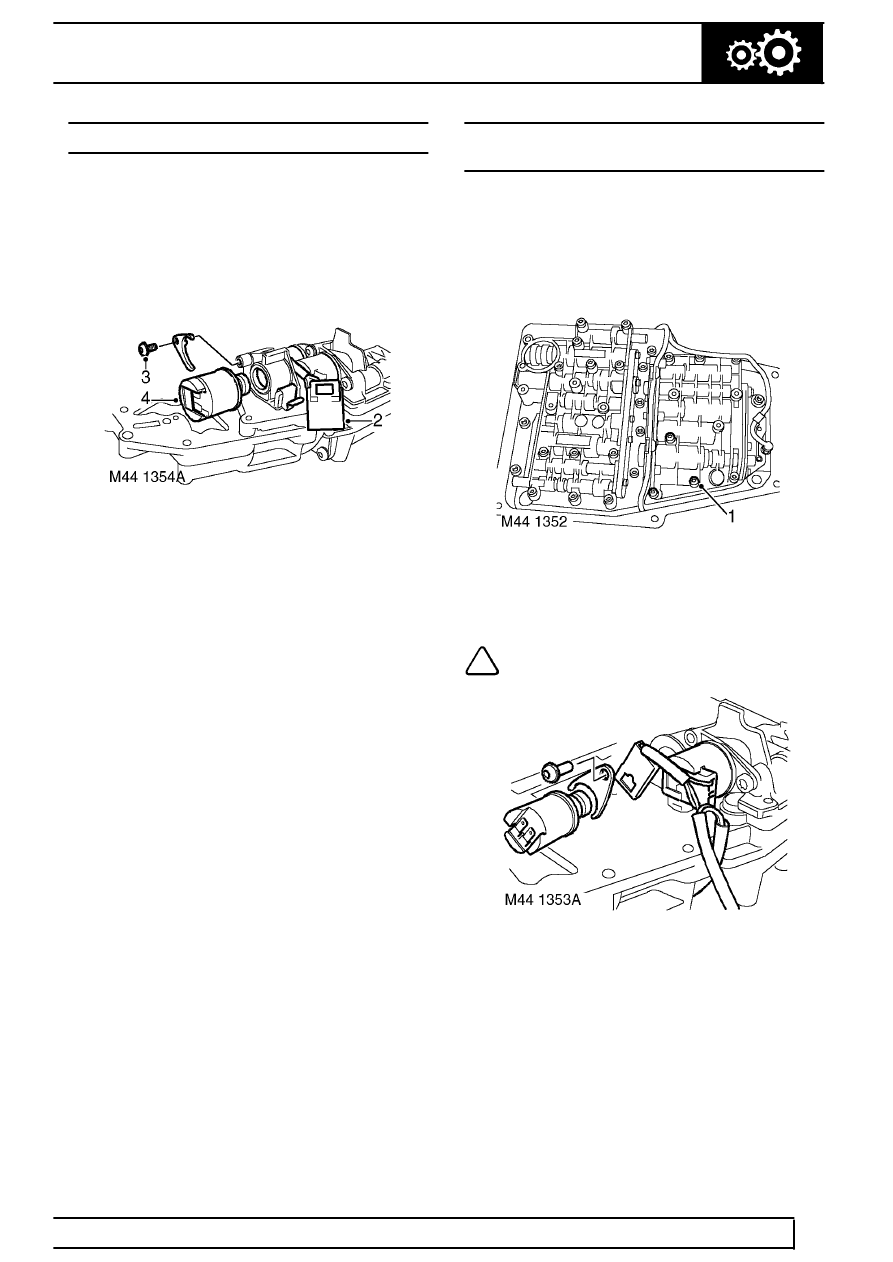

LOCK-UP SOLENOID VALVE (MV 3)
Service repair no - 44.15.35
Remove
1. Remove valve body assembly.
See this
section.
2. Disconnect multiplug from lock-up solenoid valve
and release harness from clip.
3. Remove Torx screw and retaining fork securing
solenoid valve to valve body.
4. Remove solenoid valve from valve body.
Refit
5. Clean lock-up solenoid valve with lint free cloth.
6. Position solenoid valve in valve body.
7. Position retaining fork, fit and tighten Torx screw
to
8 Nm (6lbf. ft).
8. Connect multiplug to lock-up solenoid valve and
secure harness in clip.
9. Fit valve body assembly.
See this section.
SOLENOIDS - SHIFT CONTROL VALVES (MV 1
and 2)
Service repair no - 44.15.45
Remove
1. Remove valve body assembly.
See this
section.
2. Remove 3 Torx screws securing lock-up
solenoid valve assembly to valve body and
move solenoid aside.
NOTE: This is to gain access to remove
Torx screw and MV2 shift control valve.
3. Note their fitted position and disconnect
multiplugs from shift control valves MV 1 and MV
2.
4. Remove Torx screw and retaining fork securing
MV2 shift control solenoid valve to valve body.
Note that the tag on the retaining fork faces
towards the valve body.
5. Remove shift control valve from valve body.
