Engine - K SeriesEngine and gearbox with air conditioning · page 10 of 12

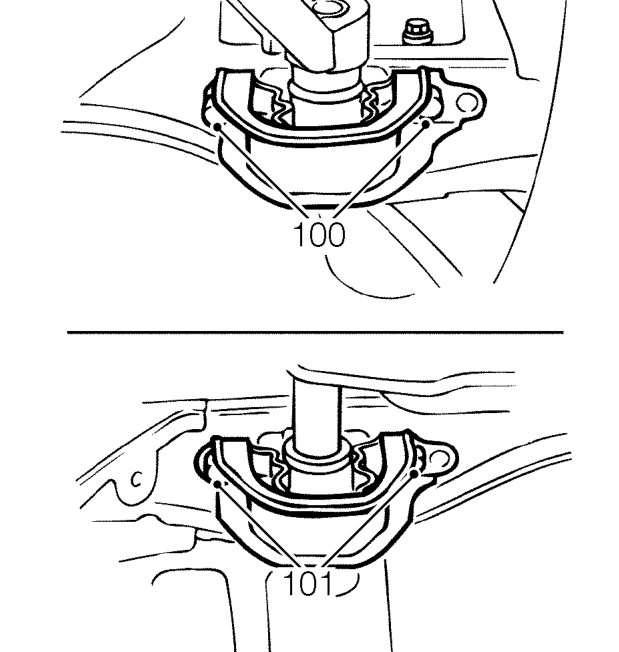

Diagram
  1. Remove 2 bolts securing LH torque mounting to body.

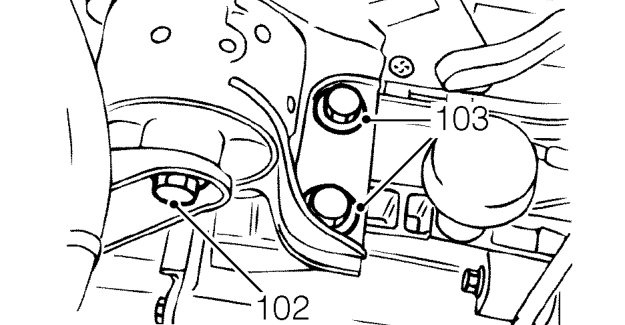

  2. Remove 2 bolts securing RH torque mounting to body.
Remove 2 bolts securing RH torque mounting to body.
  1. Loosen through bolt securing gearbox mounting to body.

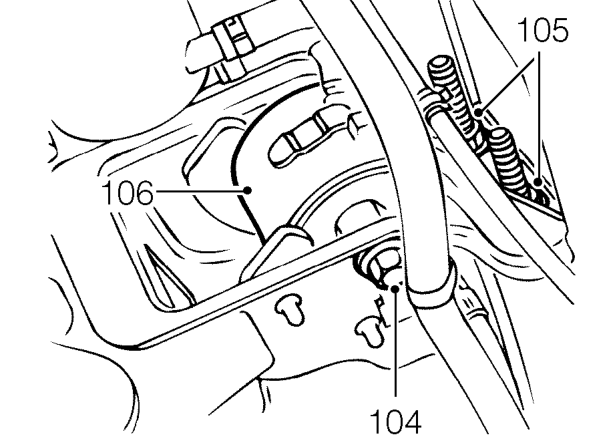

  2. Remove 2 bolts securing mounting bracket to gearbox.
Remove 2 bolts securing mounting bracket to gearbox.
  1. Loosen through bolt securing RH engine mounting to body.
  2. Remove and discard 2 nuts securing RH engine mounting to engine.
  3. Remove RH engine mounting.
  4. Using assistance, manoeuvre and lower engine and gearbox from vehicle.

NOTE: Pay particular attention to power steering pump bracket which can catch on subframe as engine is lowered.

  1. Disconnect hoist from adjustable lifting bracket.
  2. Remove engine and gearbox from beneath vehicle.
