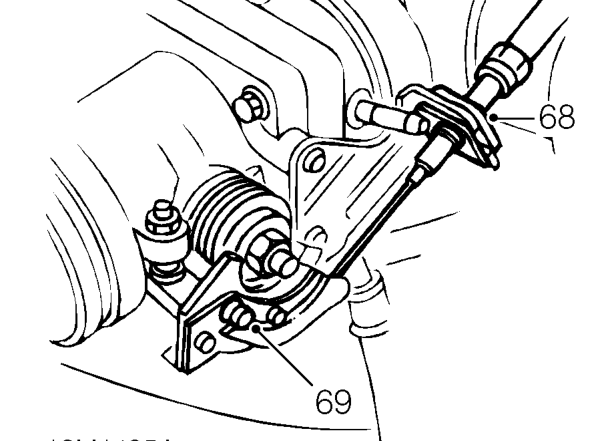

68. Release throttle cable adjusting nut from abutment bracket.
69. Release throttle cable from throttle cam.

70. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.

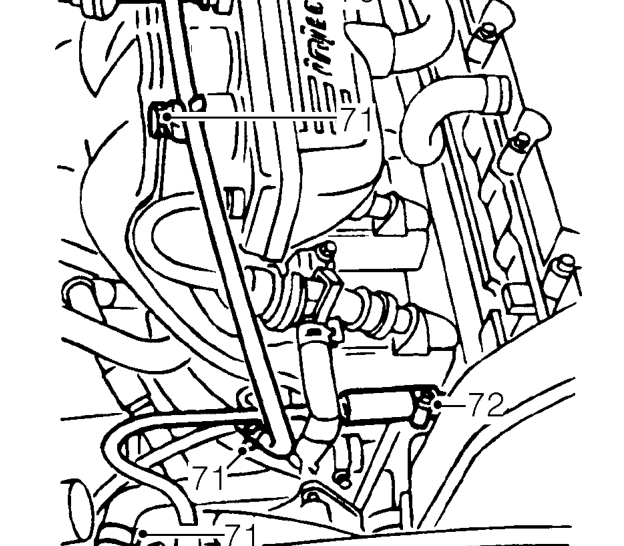

71. Release throttle cable from 3 clips.
72. Loosen clip and disconnect expansion tank hose from inlet manifold.

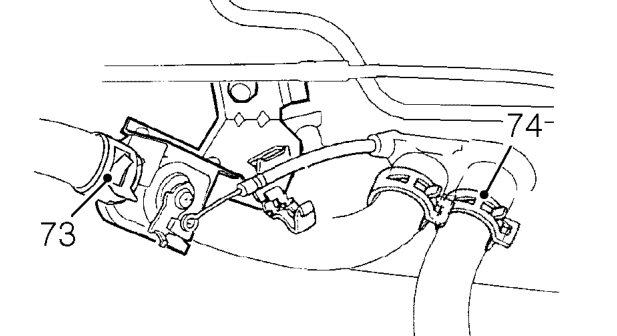

73. Release clip and disconnect hose from heater temperature control valve.
74. Release clip and disconnect hose from heater.

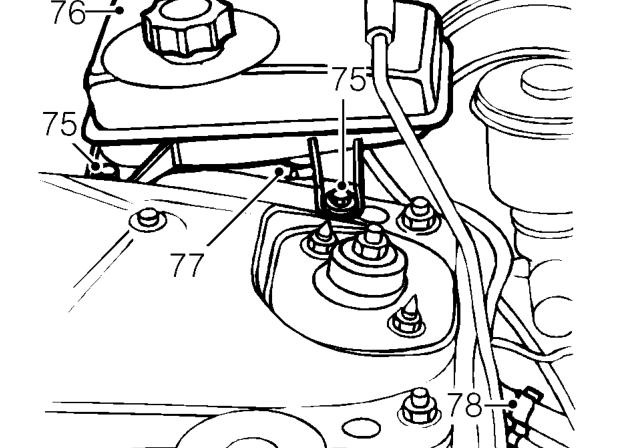

75. Remove 2 bolts securing coolant expansion tank to body.
76. Release coolant expansion tank from body.
77. Loosen clip and disconnect coolant feed hose from coolant expansion tank.
78. Release coolant hose from clip on body.
79. Position container to catch fluid loss from power steering pump.
