Engine and gearbox with air conditioning (page 4 of 12)

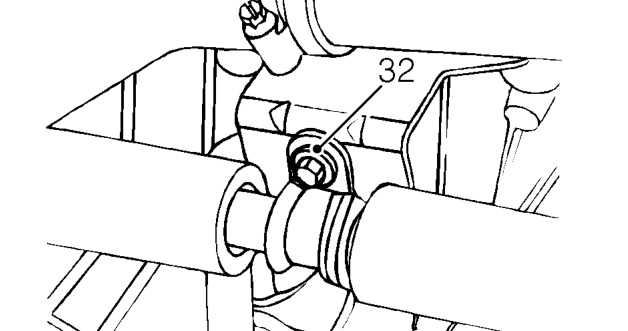

32. Remove bolt securing air conditioning pipe to bracket on gearbox.

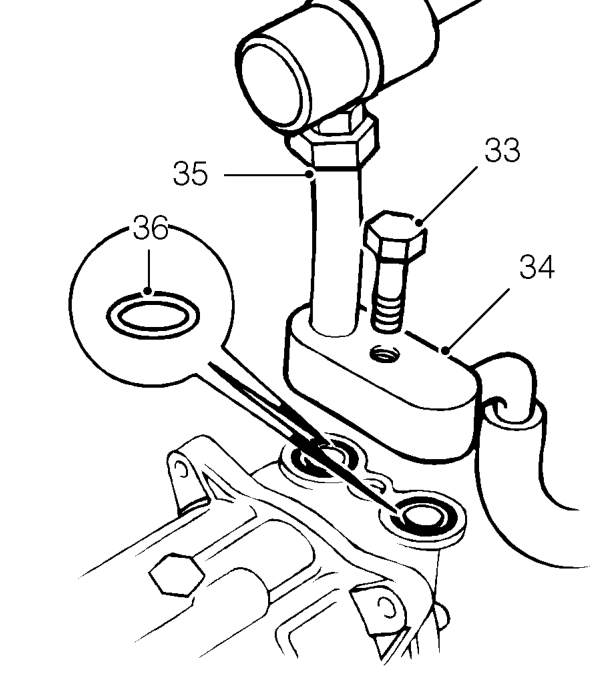

33. Remove bolt securing air conditioning pipe union to compressor.
34. Release air conditioning pipe union from compressor.
35. Remove air conditioning pipes.
36. Remove and discard 2 ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

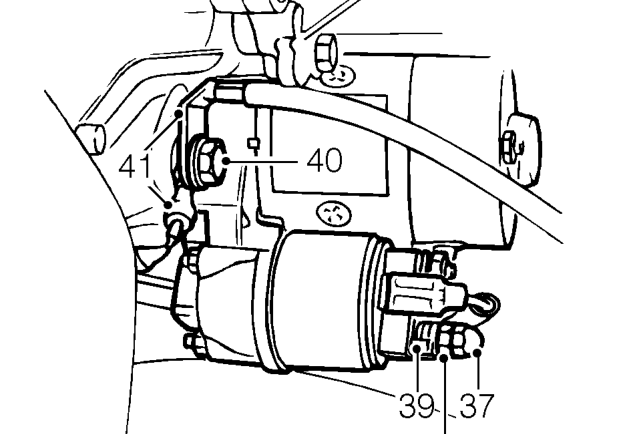

37. Remove plastic cap from nut securing battery cable to starter solenoid.
38. Remove nut securing battery cable to starter solenoid.
39. Disconnect battery cable from starter solenoid.
40. Remove upper bolt securing starter motor to engine.
41. Disconnect 2 earth leads from bolt.

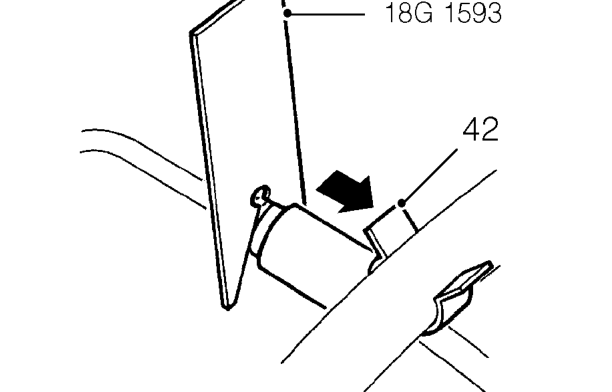

42. Release clip securing clutch hydraulic pipe to harness.
43. Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydraulic pipe.

NOTE: The quick release connector has a valve in each end preventing loss of clutch fluid and removing the need for bleeding the clutch system.
