Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Engine and gearbox with air conditioning (page 9 of 12)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesEngine and gearbox with air conditioning · page 9 of 12
Diagram

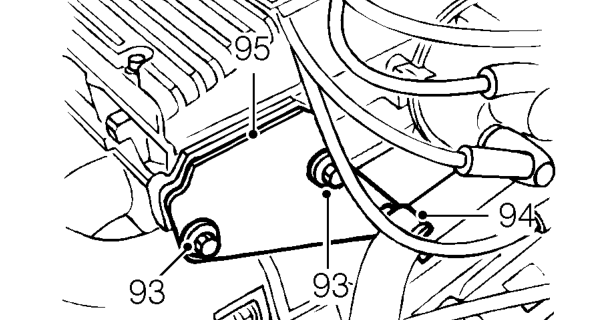

  1. Remove 2 bolts securing camshaft rear cover plate to cylinder head.
  2. Release clip securing coolant hose to camshaft rear cover plate.
  3. Remove camshaft rear cover plate.
Remove camshaft rear cover plate.

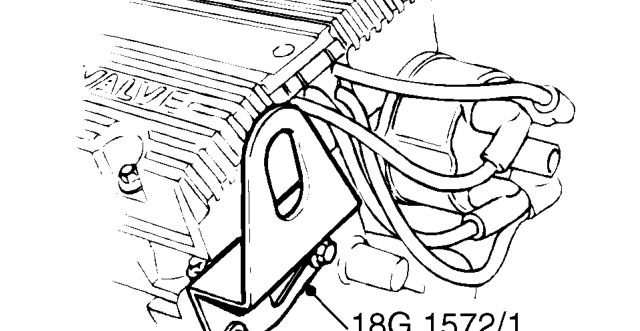

  1. Fit engine lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.
Fit engine lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm

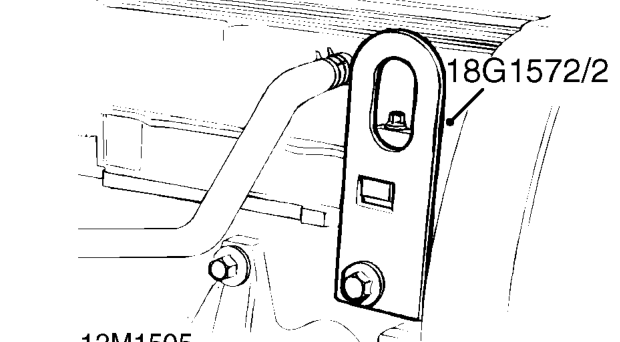

  1. Fit engine lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.
Fit engine lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.

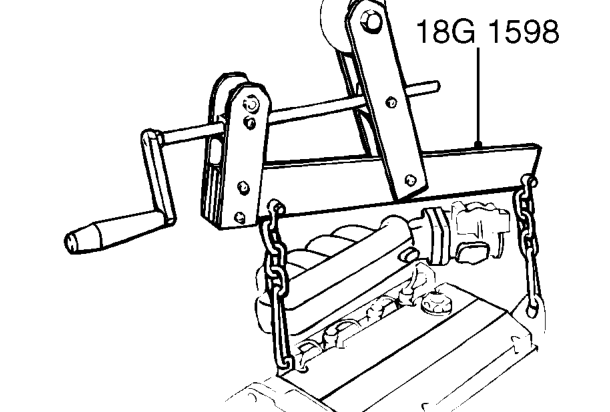

  1. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
  2. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
