Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Engine and gearbox with air conditioning (page 3 of 12)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesEngine and gearbox with air conditioning · page 3 of 12
Diagram

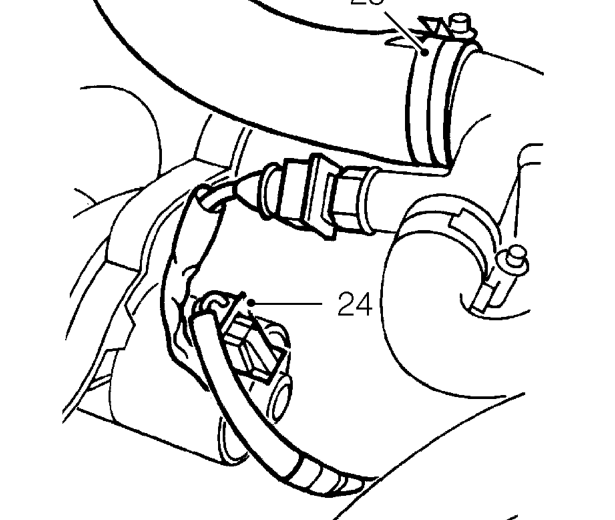

  1. Disconnect multiplug from radiator cooling fan.

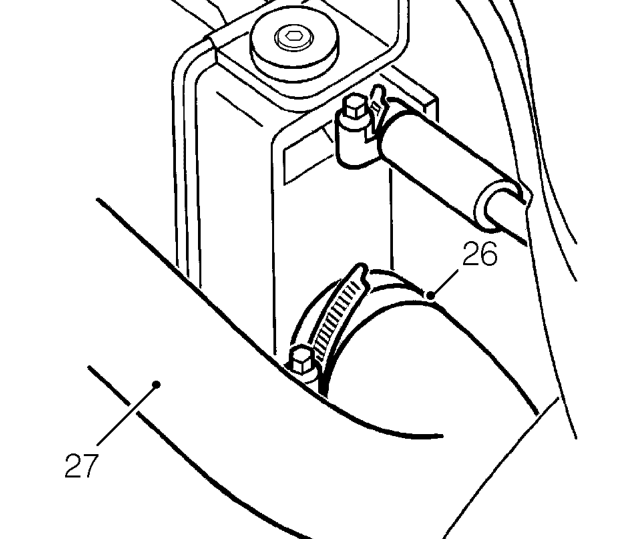

  2. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  1. Loosen clip securing top hose to radiator.
  2. Remove radiator top hose.
Remove radiator top hose.

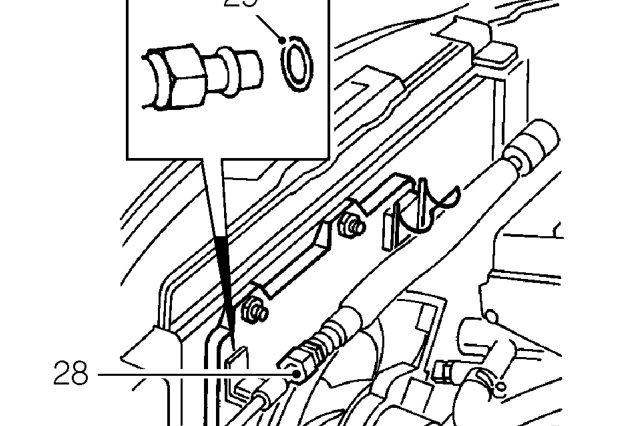

  1. Loosen union and disconnect condenser pipe from compressor pipe.

CAUTION: To prevent damage to air conditioning pipes or components use two backing spanners when loosening or tightening unions.

  1. Remove and discard ’O’ ring from condenser pipe.
Remove and discard ’O’ ring from condenser pipe.

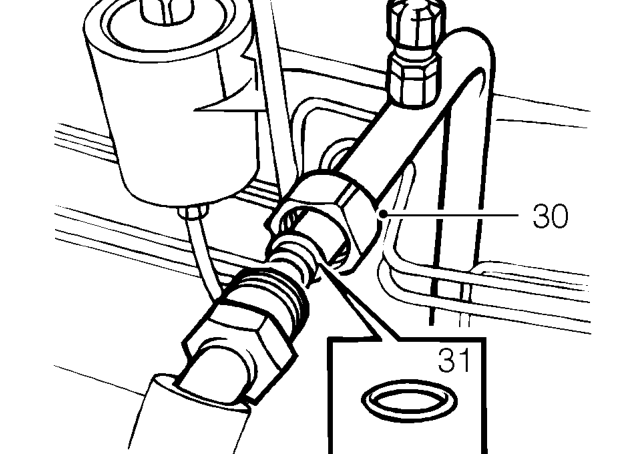

  1. Loosen union and disconnect compressor pipe from evaporator pipe.
  2. Remove and discard ’O’ ring from evaporator pipe.
