Engine and gearbox with air conditioning (page 8 of 12)

80. Release clip securing fluid inlet hose to power steering pump.
81. Disconnect fluid inlet hose from power steering pump.

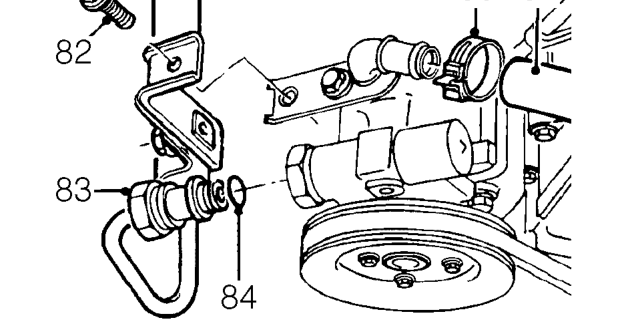

82. Remove bolt securing fluid outlet hose clamp to bracket.
83. Loosen union and disconnect fluid outlet hose from power steering pump.

CAUTION: To prevent damage to pipes and components use two spanners when loosening or tightening unions.

84. Remove and discard ’O’ ring from fluid outlet hose.
85. Plug hose and power steering pump connections to prevent excess fluid loss and the ingress of dirt and moisture into the system.

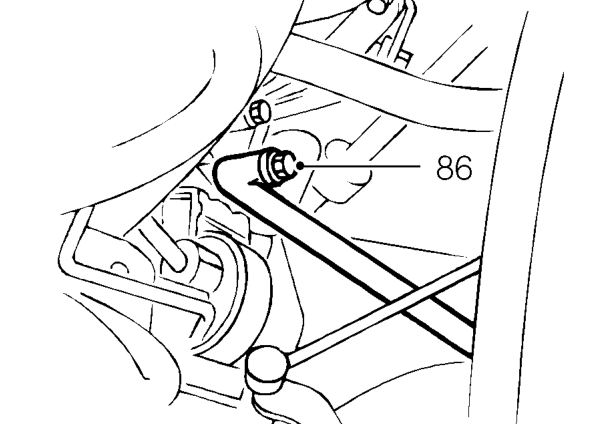

86. Remove bolt securing steady bar to engine.

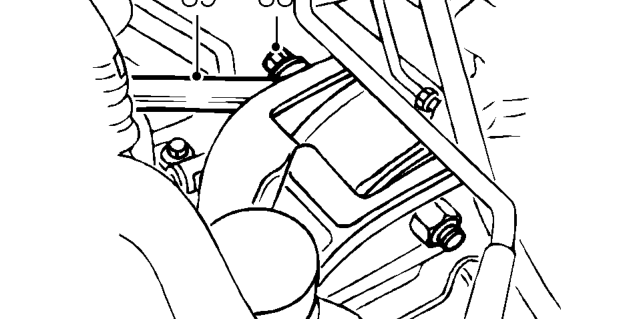

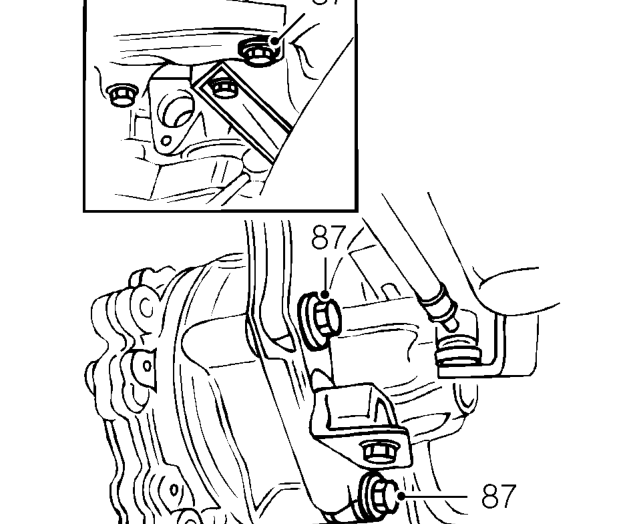

87. Remove 3 bolts securing rear engine mounting to engine.

88. Remove through bolt securing rear engine mounting bracket to body.
89. Remove engine steady bar.
90. Using tool 18G 1592 release gear selector linkage ball joint from gear selector.
91. Remove gear selector linkage.
92. Remove rear engine mounting bracket.
