Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Front damper (page 2 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront damper · page 2 of 3

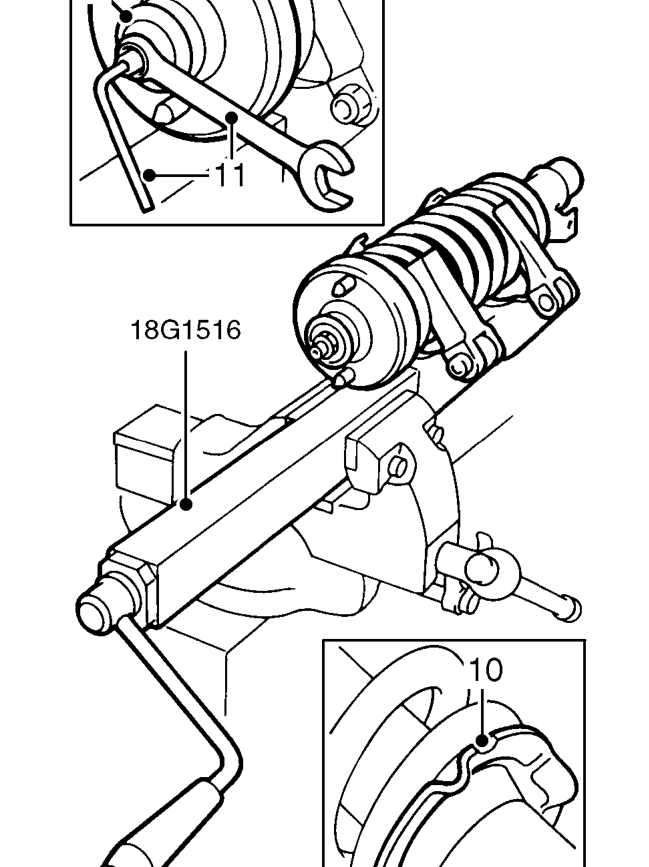

Diagram
  1. Position spring compressor tool 18G 1516 in vice.
  2. Position spring and damper assembly to spring compressor with cut-out in spring lower seat and stud in damper mounting base uppermost, as illustrated. Compress spring 2 - 3 cm.
  3. Hold shaft with 5 mm Allen key and remove spring mounting plate nut. Discard nut.
  4. Remove washer and mounting plate.

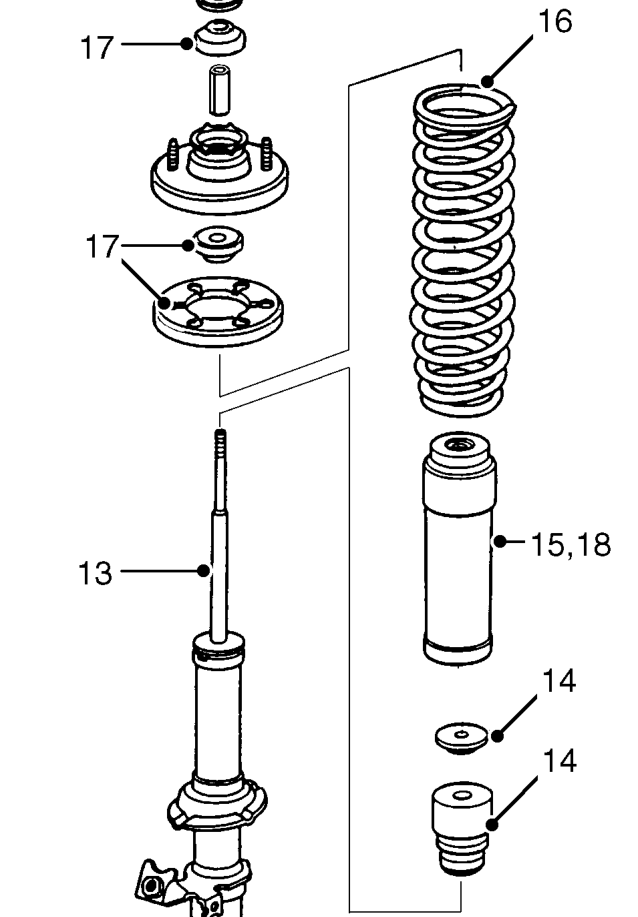

Remove washer and mounting plate.
  1. Remove damper from spring.
  2. Remove bump stop plate and bump stop.
  3. Remove dust cover.
  4. Loosen spring compressor and remove spring.
  5. Inspect spring mounting rubbers for deterioration and damage.
  6. Inspect dust cover for damage.
