12 · Steering & suspension

Steering Wheel (with SRS) Removal (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringSteering Wheel (with SRS) Removal · page 2 of 2

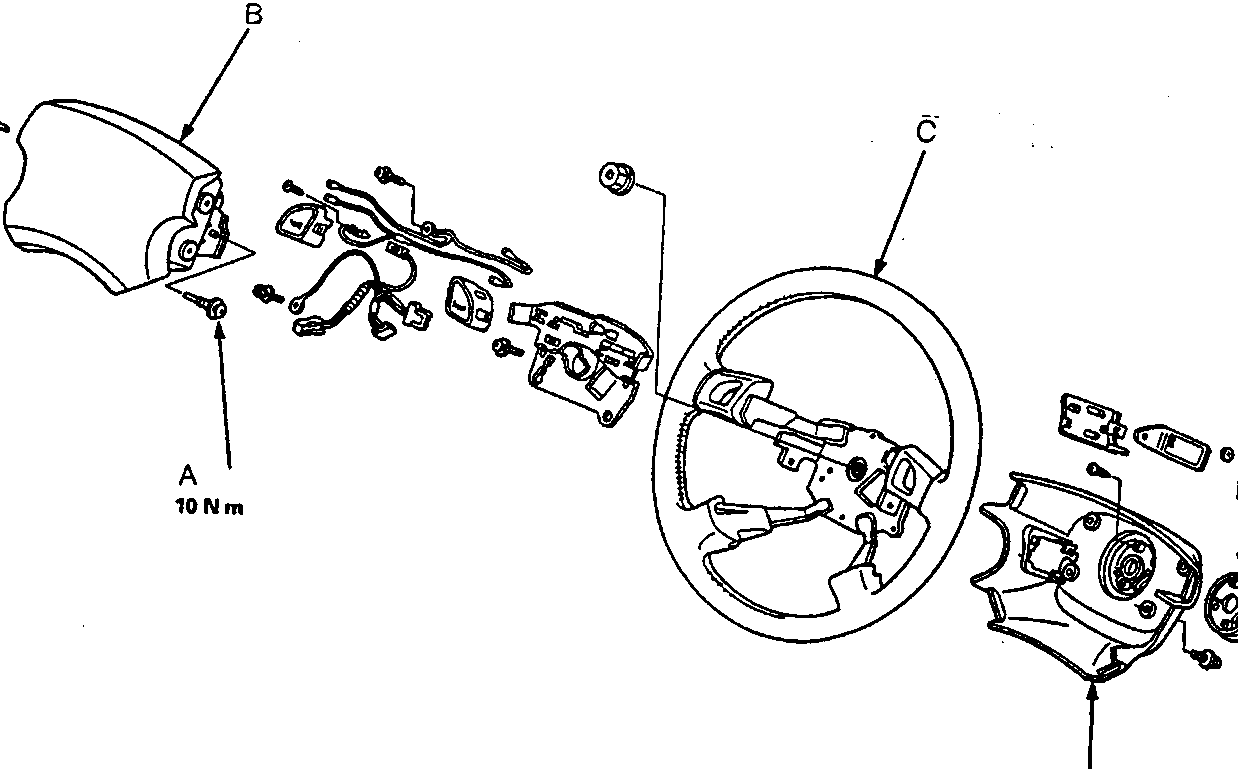

Exploded view of the steering wheel components including airbag assembly, steering wheel, spacer, and lower cover with torque specifications

A TORX bolt
B Airbag Assembly
C Steering Wheel
D Spacer
E Wheel Lower Cover

WARNING: Store a removed airbag assembly with the pad surface up. If the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

Note: If an intact airbag assembly has been removed from a scrapped car, or has been found defective or damaged during transit, storage or service, it should be deployed, see ELECTRICAL .

CAUTION:

  • Carefully inspect the airbag assembly before installing. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks or deformation.
  • Do not disassemble or tamper with the airbag assembly.
