Clutch slave cylinder - KV6

CLUTCH SLAVE CYLINDER - KV6

Service repair no - 33.35.01

Remove

1. Remove underbelly panel. See BODY, Repairs.
2. Fit hose clamp to hose below master cylinder.
3. Position cloth to catch fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

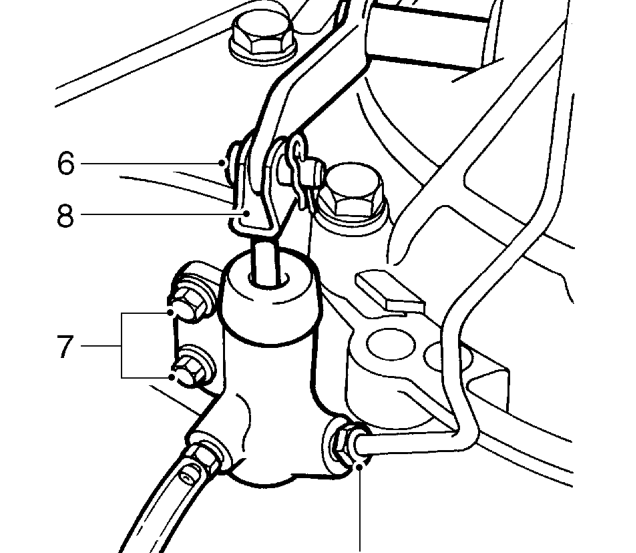

4. Disconnect union and release pipe from slave cylinder.

CAUTION: Plug the connections.

5. Remove ’R’ clip.
6. Withdraw clevis pin from push rod fork and release lever.
7. Remove 2 bolts securing slave cylinder to housing.
8. Release push rod and remove slave cylinder.

Refit

1. Engage push rod fork in release lever and fit slave cylinder, tighten bolts to 22 Nm.
2. Fit clevis pin and retain with ’R’ clip.
3. Connect pipe union to slave cylinder.
4. Remove clamp from hose.
5. Bleed clutch system. See Adjustments.
6. Fit underbelly panel. See BODY, Repairs.
