Clutch damper - KV6

CLUTCH DAMPER - KV6

Service repair no - 33.15.05

Remove

1. Fit hose clamp to reservoir hose.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

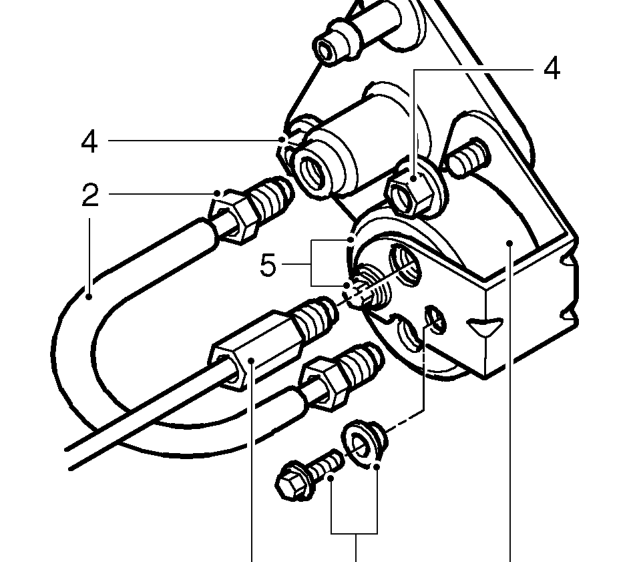

2. Disconnect 2 damper pipe unions and remove damper pipe.

CAUTION: Plug the connections.

3. Disconnect pipe union and release pipe from damper.
4. Remove 2 nuts securing damper bracket to master cylinder and remove damper assembly.
5. Remove 2 screws and remove damper from support bracket, note 2 collars in bracket.
6. Remove mounting rubber from damper.

Refit

1. Fit mounting rubber onto damper.
2. Fit damper to support bracket, tighten screws to 6 Nm.
3. Position damper bracket on master cylinder, tighten nuts to 12 Nm.
4. Fit damper pipe, tighten unions to 22 Nm.
5. Remove hose clamp.
6. Bleed clutch system. See Adjustments.
