MASTER CYLINDER - KV6

Service repair no - 33.20.01

Remove

  1. Attach bleed tube to slave cylinder bleed screw, loosen screw and pump fluid from system. Tighten bleed screw.
Master cylinder - kv6 – Attach bleed tube to slave cylinder bleed screw, loosen screw and pump fluid from system.
  1. Position cloth to catch fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

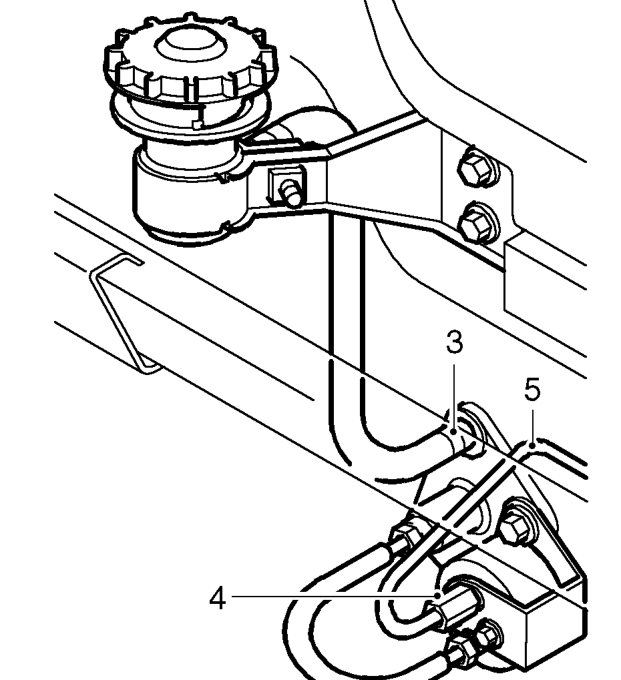

  1. Release clip and disconnect feed hose from master cylinder.
  2. Disconnect pipe union from damper.
  3. Release pipe from body clip, position pipe aside.

CAUTION: Plug the connections.

  1. Release 4 turnbuckles and remove closing panel from below steering column.
Master cylinder - kv6 – Release 4 turnbuckles and remove closing panel from below steering column.

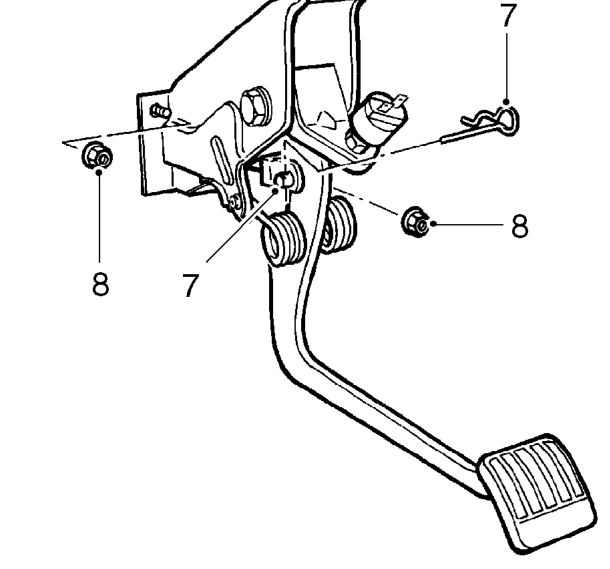

  1. Withdraw ’R’ clip and remove clevis pin from push rod fork and clutch pedal.
  2. Remove 2 nuts securing master cylinder.
