Clutch fluid reservoir - KV6

CLUTCH FLUID RESERVOIR - KV6

Service repair no - 33.20.08

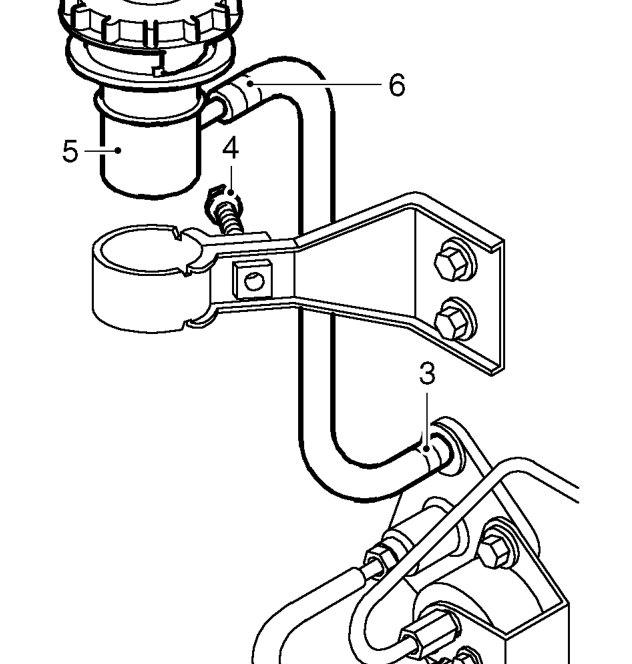

Remove

1. Fit hose clamp to reservoir hose.
2. Position cloth to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

3. Release clip and disconnect feed hose from master cylinder.

CAUTION: Plug the connections.

4. Remove screw securing reservoir in bracket.
5. Open bracket and remove reservoir.
6. Release clip and remove hose.

Refit

1. Fit hose to reservoir and secure with clip.
2. Position reservoir in bracket and tighten screw.
3. Fit hose to master cylinder and retain with clip.
4. Remove hose clamp.
5. Bleed clutch system. See Adjustments.
