Master cylinder - KV6 (page 2 of 2)

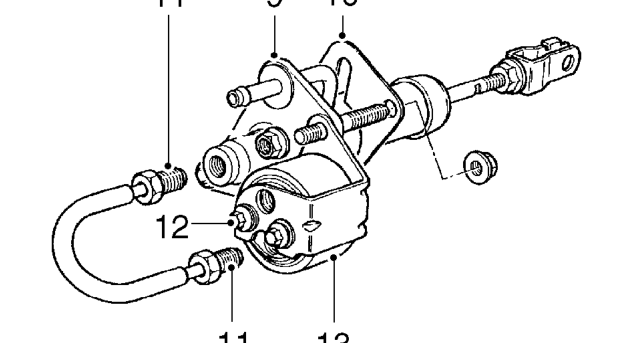

9. Remove master cylinder and damper assembly.
10. Remove master cylinder gasket.
11. Disconnect 2 unions and remove connecting pipe.

CAUTION: Plug the connections.

12. Remove 2 nuts securing damper bracket.
13. Remove damper from master cylinder.

Refit

1. Fit damper bracket to master cylinder, tighten nuts to 12 Nm.
2. Fit connecting pipe to damper, tighten unions to 15 Nm.
3. Clean joint faces and fit gasket to master cylinder.
4. Fit master cylinder, ensuring push rod fork engages with pedal, tighten nuts to 12 Nm.
5. Fit clevis pin to secure push rod to pedal and retain with ’R’ clip
6. Fit closing panel and secure with turnbuckles.
7. Connect pipe to damper, tighten union to 15 Nm.
8. Secure pipe to body clip.
9. Connect hose to master cylinder, secure with clip.
10. Bleed clutch system. See Adjustments.
