Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

76M1301

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings › 76M1301
Body76M1301

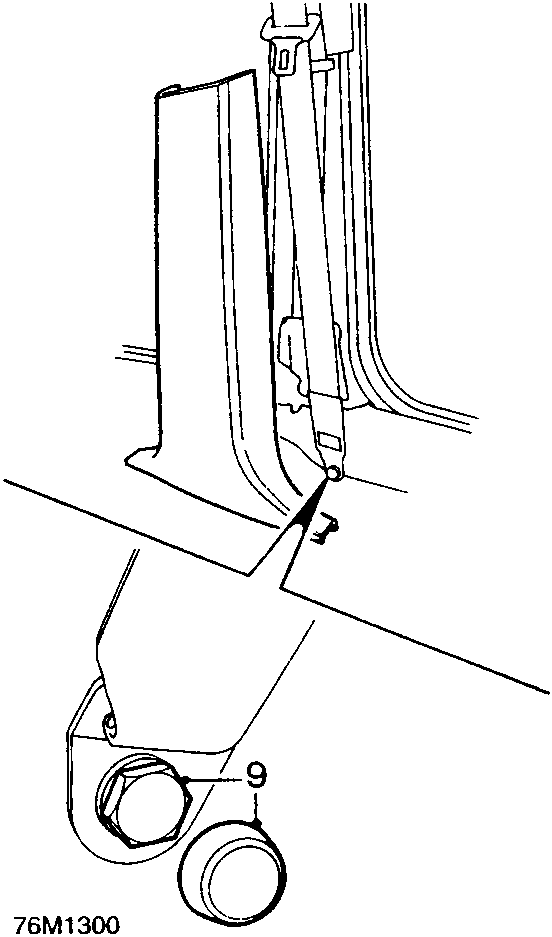

Diagram showing the lower anchorage point of a drivers seat belt with callout number 9
  1. Remove cover and bolt from drivers seat belt lower anchorage point.

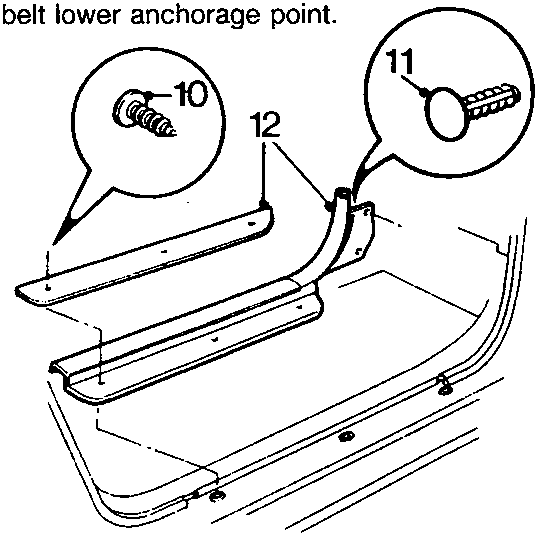

Diagram showing screws, trim fasteners, door sill finisher and carpet retainer with callout numbers 10, 11 and 12

76M1301

  1. Remove 3 screws securing drivers door sill finisher and carpet retainer.
  2. Remove 2 trim fasteners securing carpet retainer to 'A' post lower trim panel.
  3. Remove drivers door sill finisher and carpet retainer.
Diagram showing control cable housing with callout numbers 15 and 16

76M1302

  1. Remove knobs from tailgate and fuel flap release levers.
  2. Release cover on control cable housing.
  3. Remove screw and trim fastener securing control cable housing to body.
  4. Remove control cable housing.

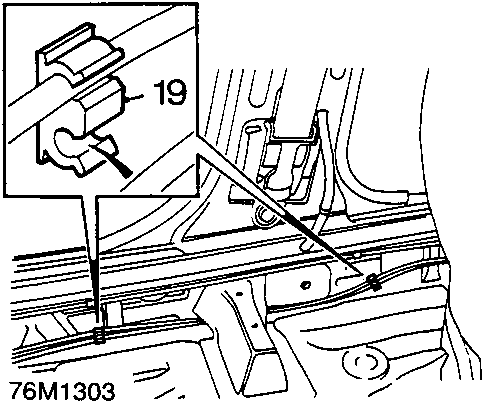

Diagram showing rear door sill insulation and release cable retaining clip with callout number 19

76M1303

  1. Release front and rear door carpet retaining strips from body flange and fold back carpet.
  2. Remove tape securing release cable to body harness and body.
  3. Lift rear door sill insulation to access and release cable from retaining clip.

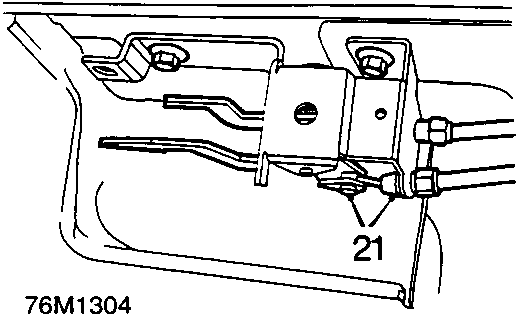

Diagram showing outer cable abutment bracket and inner cable connection to taildoor lever with callout number 21

76M1304

  1. Lift front door sill insulation to access and release cable from retaining clip.
  2. Release outer cable from abutment bracket and disconnect inner cable from taildoor lever.
  3. Withdraw cable from under seat apertures and remove cable.
