Exterior fittings › Remove
BodyRemove

Service Repair No. 76.22.15

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Open luggage compartment.

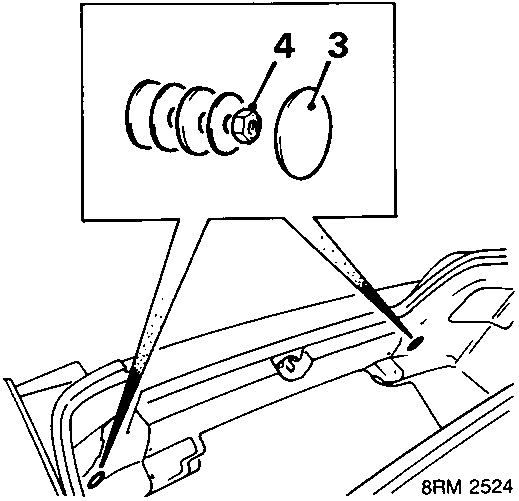

Diagram showing grommets and washers at the rear panel of the luggage compartment
  1. Remove 2 grommets from rear panel of luggage compartment.
  2. Remove 2 nuts and washers, rear bumper to luggage compartment rear panel.

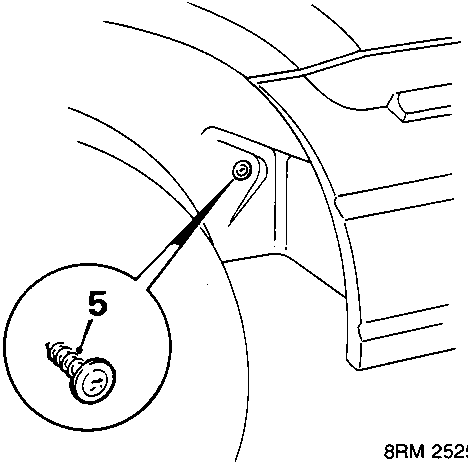

Diagram showing screw location for L.H. wheel arch liner to wheel arch
  1. Remove screw, L.H. wheel arch liner to wheel arch.

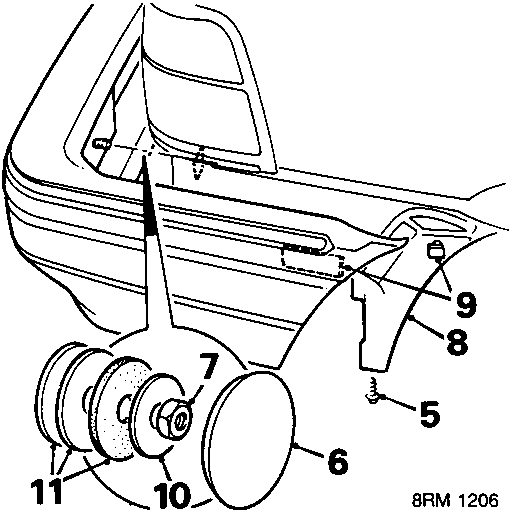

Diagram showing rear bumper assembly with numbered callouts for removal steps
  1. Remove screw, R.H. wheel arch liner to bumper.
  2. Open taildoor, remove 2 grommets from body panel.
  3. Remove 2 nuts, bumper to mounting brackets.
  4. Use an assistant to release both wheel arch liners from bumper.
  5. Release bumper from corner slides and remove the bumper assembly.
  6. Retrieve 2 washers from studs.

Do not carry out further dismantling if component is removed for access only

  1. Remove sealing washer and 2 flat washers from each stud.
  2. Transfer components removed to new bumper.

Refit

  1. Position bumper and engage corner slides onto clips.
  2. Fit flat washers and nuts to studs, tighten to 22 Nm.
  3. Fit grommets to body panel, close taildoor.
  4. Fit screw, R.H. wheel arch liner to bumper.
  5. Fit screws, L.H. closing panels and wheel arch liner to bumper.
  6. Fit bolt bumper centre to body, tighten to 10 Nm.
  7. Remove stand(s) and lower vehicle.
