Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings › Remove
BodyRemove

Service Repair No. 76.22.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

Diagram showing the lower section of the front bumper with trim studs and screws indicated by callout number 2.
  1. Coupe, bib spoiler where fitted: Remove trim studs and 4 screws securing each half of bib spoiler, remove bib spoiler.

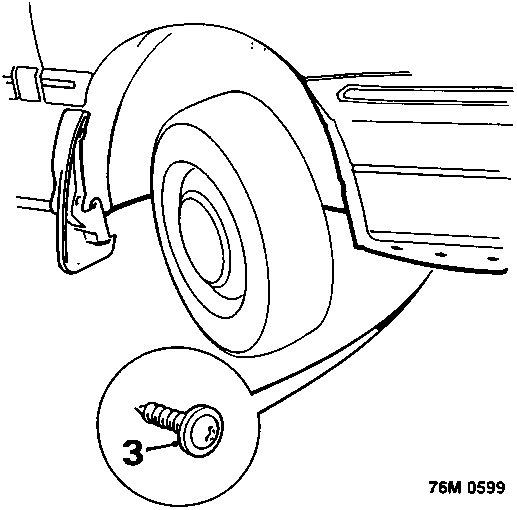

Diagram showing the front wheel arch area with a screw indicated by callout number 3 securing the bumper to the wheel arch liner.
  1. All models: Remove 4 (3) screws, bumper to wheel arch liner – each side.

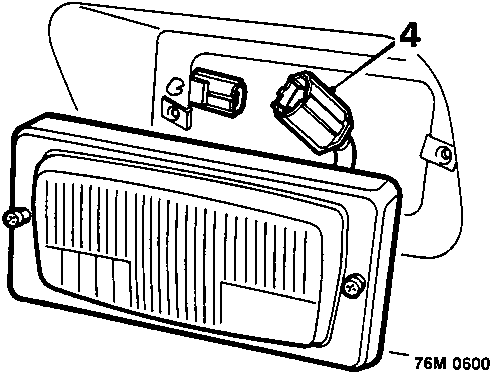

Diagram showing a front fog lamp assembly with its wiring multiplug connector indicated by callout number 4.
  1. Coupe: Disconnect harness multiplugs from front fog lamps.

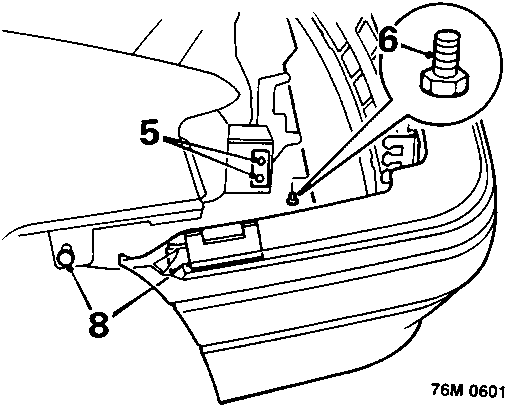

Diagram showing the underside of the front bumper with bolts indicated by callout numbers 5, 6, and 8 securing it to brackets and the underbelly panel.
  1. Slacken (but do not remove) 4 bolts securing bumper to mounting brackets.
  2. Not Coupe: Remove 3 bolts securing bumper to underbelly panel.

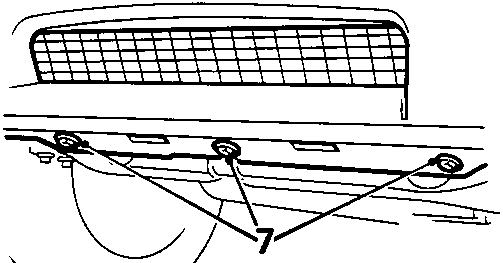

Diagram showing the lower edge of the front bumper with bolts indicated by callout number 7 securing it to the cross member.
  1. Coupe: Remove 3 bolts securing bumper to cross member.
  2. With assistance, release bumper from corner slides and remove bumper assembly.

Do not carry out further dismantling if component is removed for access only

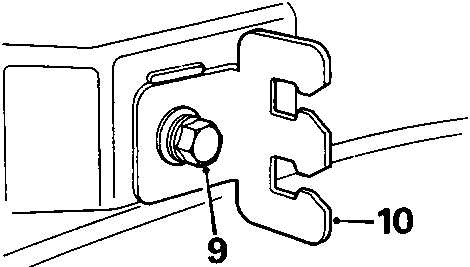

Diagram showing a mounting bracket attached to the bumper with bolts indicated by callout numbers 9 and 10.
  1. Remove 2 bolts, mounting brackets to bumper. Tighten bolts to 10 Nm.
  2. Remove 2 mounting brackets.
  3. Remove number plate.

Coupe

  1. Remove 2 screws securing each fog lamp.
  2. Release fog lamp multiplug clips from bumper and remove fog lamps.
  3. Remove 2 screws securing each bib spoiler, remove bib spoiler.
  4. Remove speed nuts from bumper.
