Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings › Refit
BodyRefit

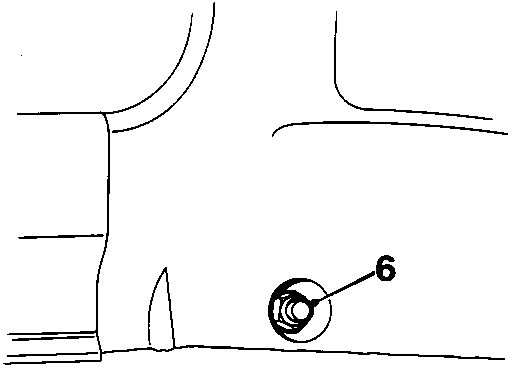

Diagram showing the rear bumper area with a callout number 6 pointing to a nut securing the bumper to the body.
  1. Open luggage compartment, remove 2 Nyloc nuts securing bumper to body, collect plain washers.

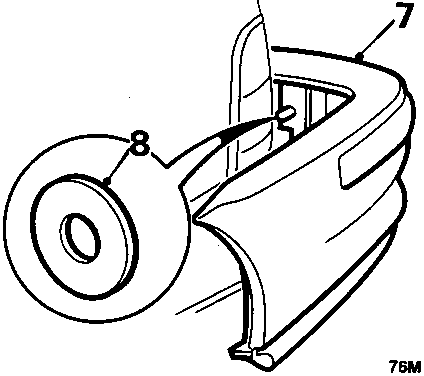

Diagram showing the rear bumper assembly being removed from the vehicle, with callout numbers 7 and 8 indicating parts of the assembly.
  1. Using assistance, release both sides of bumper from body, remove bumper assembly.

Do not carry out further dismantling if component is removed for access only

  1. Remove sealing washer from upper studs bumper.

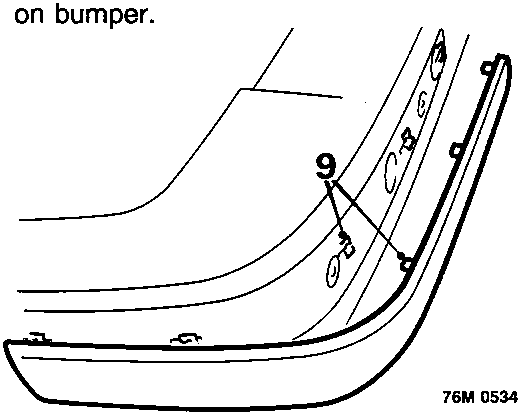

Diagram showing the inner structure of the bumper with callout number 9 pointing to clips and inserts.
  1. Release each bumper insert from 5 clips. Remove inserts and clips.
  2. Transfer components removed to new bumper.

Refit

  1. Using assistance, fit bumper and engage studs to body locations.
  2. Fit washers and nuts to bumper studs and tighten to 22 Nm.
  3. Close boot.
  4. Fit nuts to side studs, adjust bumper sides and tighten nuts to 10 Nm.
  5. Engage wheel arch liners to bumper, fit and tighten screws.
  6. Fit and tighten bolt to L.H. wheel arch liner.
  7. Remove stand(s) and lower vehicle.
