DOOR MIRROR GLASS – MANUAL CONTROL

Service Repair No. 76.11.11

Remove

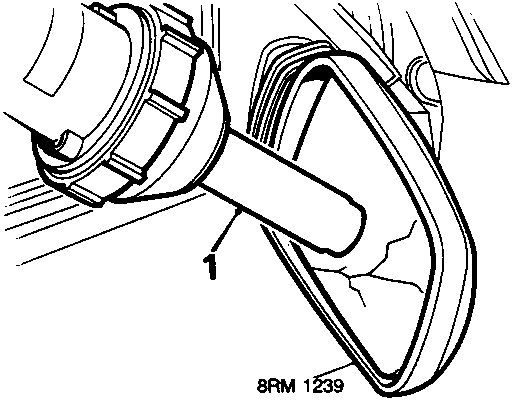

Diagram showing a hot air gun being used to remove glass fragments and double sided tape from the mirror housing, callout 1.
  1. Remove glass fragments and double sided tape using a hot air gun (Leister air gun set to 8).

Refit

  1. Clean mounting pad.
  2. Press mirror glass firmly into place.
  3. Remove protection from mirror glass.
  4. Set mirror position.

DOOR MIRROR GLASS – ELECTRIC

Service Repair No. 76.11.11

Remove

  1. Switch ON ignition.
  2. Operate mirror, tilt fully down for access to rear of glass.
  3. Switch OFF ignition.

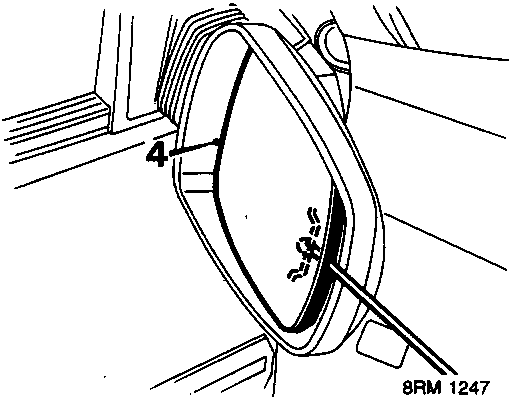

Diagram showing a tool disconnecting the retaining spring (callout 4) at the rear of the electric mirror glass.
  1. Disconnect retaining spring and remove glass from mirror head.

Note: Make a hook in a suitable 20 cm length of wire to disconnect spring.

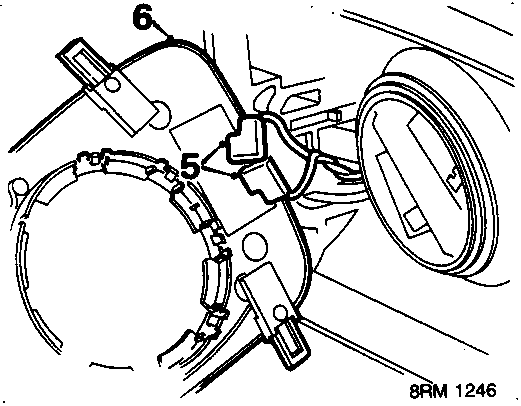

Diagram showing the rear of the electric mirror assembly with the Lucar connector (callout 5) and wiring (callout 6).
  1. Disconnect lucar from rear of glass.
  2. Remove mirror glass.

Refit

  1. Position new glass.
  2. Connect Lucar.
  3. Secure glass to mirror head.
  4. Remove protection from mirror glass.
  5. Switch ON ignition.
  6. Set mirror position.
  7. Switch OFF ignition.
