Refit

Refit

1. Fit cable to vehicle and position through front seat apertures.
2. Connect inner cable to taildoor release lever and outer cable to abutment bracket.
3. Lift front door sill insulation to access and secure release cable to retaining clip.
4. Lift rear door sill insulation to access and secure release cable to retaining clip.
5. Secure cable to body harness and body with tape.
6. Position and secure front and rear door carpet retaining strips to body flange.
7. Ensure carpet is positioned beneath 'D' post lower trim.
8. Fit control cable housing and secure with trim fastener and screw.
9. Secure cover on control cable housing.
10. Fit knobs to tailgate and fuel flap release levers.
11. Fit door sill finisher and carpet retainer.
12. Secure carpet retainer to lower 'A' post trim panel with trim fasteners.
13. Secure driver door carpet retainer and sill finisher to body with screws.
14. Position front seat belt lower anchorage point to body, fit bolt and tighten to 32 Nm. Fit cover to anchorage bolt.
15. Feed cable through rear seat squab striker panel.
16. Secure cable to clips in luggage compartment.
17. Route cable through rear panel.
18. Secure outer cable to abutment bracket and connect inner cable to latch release lever.
19. Fit luggage compartment RH side trim, see Luggage compartment side trim – Tourer.
20. Fit luggage compartment trim finisher, see Luggage compartment trim finisher.
21. Fit 'D' post lower trim finisher, see 'D' Post lower trim finisher – Tourer.

DOOR MIRROR – ELECTRIC

Service Repair No. 76.10.52

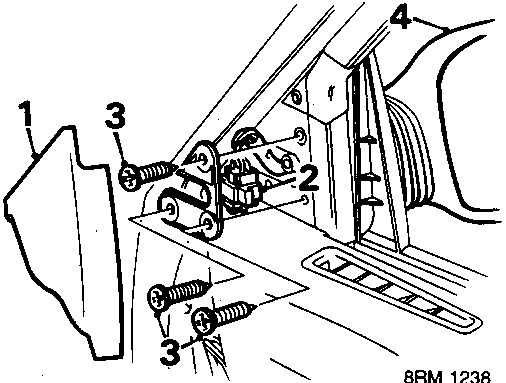

Remove

1. Remove mirror cheater panel.
2. Disconnect electric mirror multiplug.
3. Remove 3 screws, mirror to door.
4. Remove mirror.

Refit

1. Position mirror on door.
2. Fit and tighten screws mirror to door.
3. Connect electric mirror multiplug.
4. Fit mirror cheater panel.
