Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Fuel filler flap release cable

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings › Fuel filler flap release cable
BodyFuel filler flap release cable

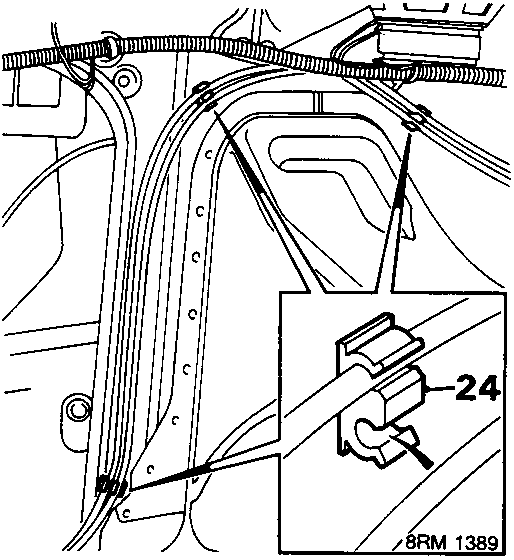

Diagram showing a cable being released from clips in the luggage compartment, with callout number 24.

All models

  1. Release cable from 3 clips in luggage compartment.
  2. Pull cable through rear seat squab striker panel and remove tape securing cable to rear seat pan.

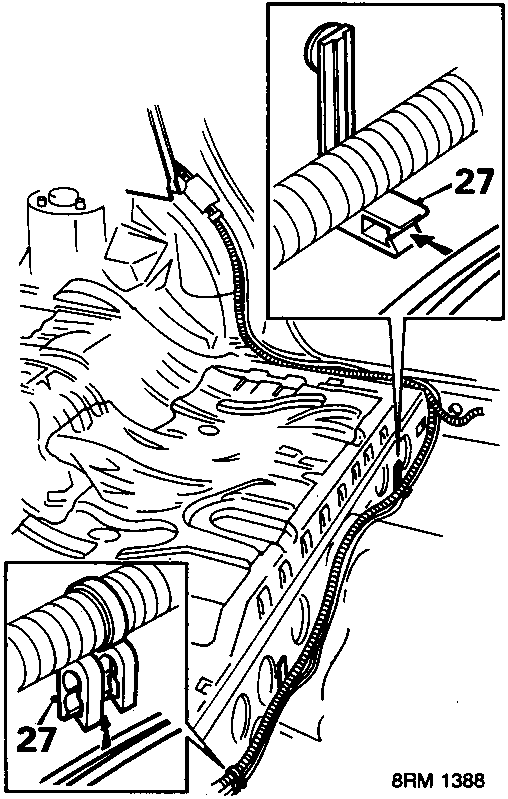

Diagram showing a cable being released from heelboard clips, with callout number 27.
  1. Release cable from behind wiring harness.
  2. R.H. steering: Release cable from heelboard clips.

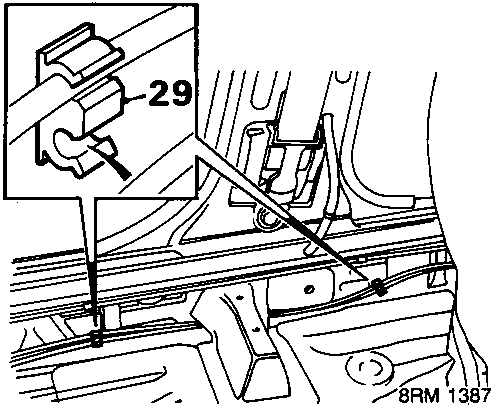

Diagram showing carpet being released from driver's door sill and a cable being released from sill clips, with callout number 29.
  1. Release carpet from driver's door sill and move carpet and underlay aside.
  2. Release cable from sill clips.

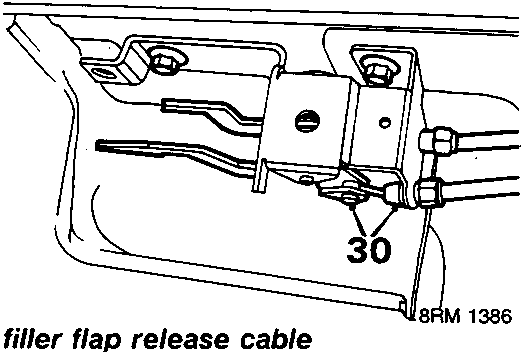

Diagram showing an outer cable being released from an abutment and an inner cable disconnected from a fuel flap lever, with callout number 30.

Fuel filler flap release cable

  1. Release outer cable from abutment and disconnect inner cable from fuel flap lever.

Taildoor release cable

  1. Release outer cable from abutment bracket and disconnect inner cable from taildoor lever.

All models

  1. Pull cable back from under seat mounting apertures and remove cable from vehicle.
