Remove

Service Repair No. 76.19.02

Remove

1. Supprt luggage compartment lid in open position, if both struts are to be removed.

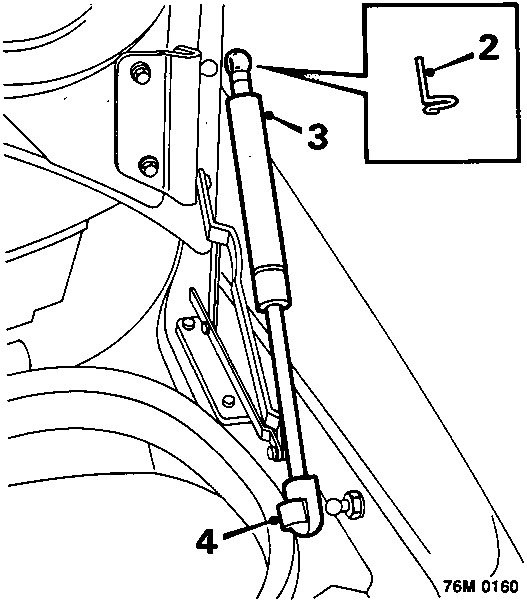

2. Disengage and remove wire clip securing strut to lid.
3. Pull on strut top mounting to disengage it from lid ball joint.
4. Prise spring steel clip from lower strut mounting and pull strut free from ball joint.

Refit

1. Fit spring steel clip to strut and engage strut over ball joint in body.

CAUTION: Ensure retaining clip is correctly positioned.

2. Push upper strut ball joint into place.
3. Secure upper strut ball joint to lid with wire clip.

PRIVATE LOCK – LUGGAGE COMPARTMENT – 400 SERIES

Service Repair No. 76.19.10

Remove

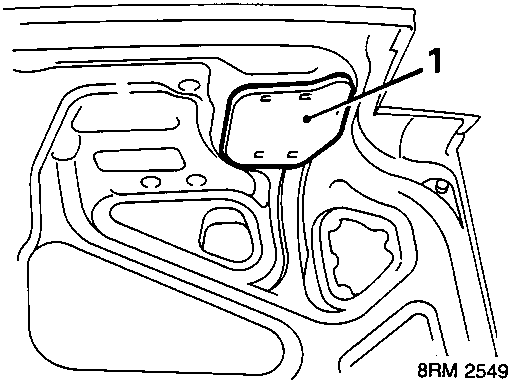

1. Remove R.H. cover from luggage compartment lid.

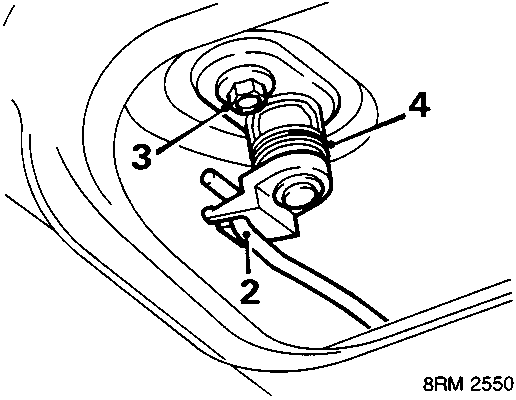

2. Release operating rod from private lock.
3. Remove bolt, private lock to luggage compartment lid.
4. Twist private lock anti – clockwise and remove lock.
5. Discard gasket.

Refit

1. Clean private lock gasket face.
2. Remove backing from new gasket and fit gasket to private lock.
3. Position private lock to luggage compartment lid. Twist private lock clockwise to engage with lid.
4. Fit and tighten bolt to 10 Nm to secure private lock.
5. Connect operating rod to private lock.
6. Fit R.H. cover to luggage compartment lid.
