BodyFuel filler flap and taildoor release cables · page 1 of 3
  1. Fit spare wheel cover board and luggage compartment carpet.
  2. Remove stand(s) and lower vehicle.

FUEL FILLER FLAP AND TAILDOOR RELEASE CABLES

Service Repair No. Fuel filler flap 19.55.22

Service Repair No. Taildoor 76.37.71

Remove

  1. Remove driver's seat, see Front seat.

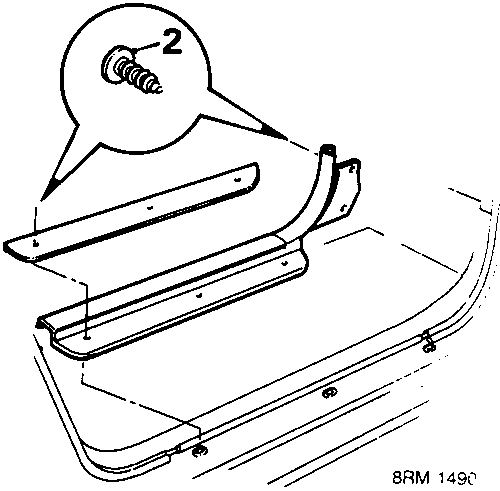

Diagram showing the removal of front door sill finisher and carpet retainer on the driver's side, with a callout highlighting screw number 2.
  1. Remove 3 screws, lift front door sill finisher and carpet retainer, driver's side.

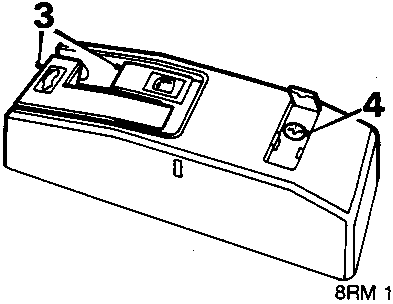

Diagram showing the release levers in the centre console area, with callouts for knobs (3) and a screw (4).
  1. Remove knobs from release levers.
  2. Remove screw and release lever cover.

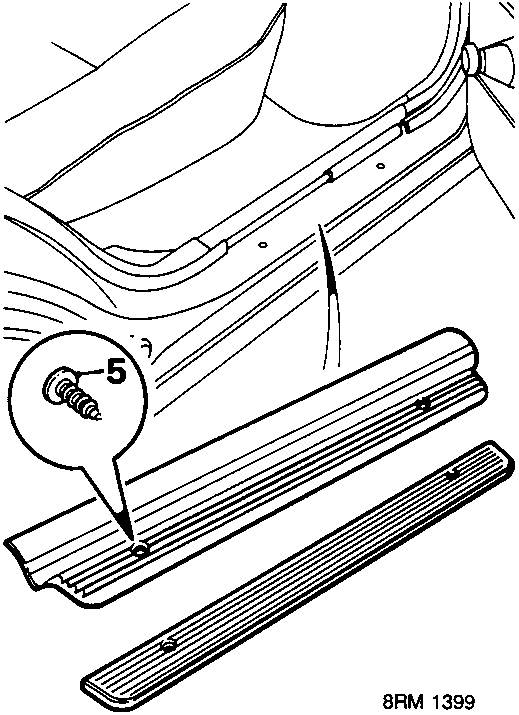

Diagram showing the rear door sill finisher and carpet retainer on the driver's side, with a callout highlighting screw number 5.
  1. Remove 2 screws, lift rear door sill finisher and carpet retainer, driver's side.

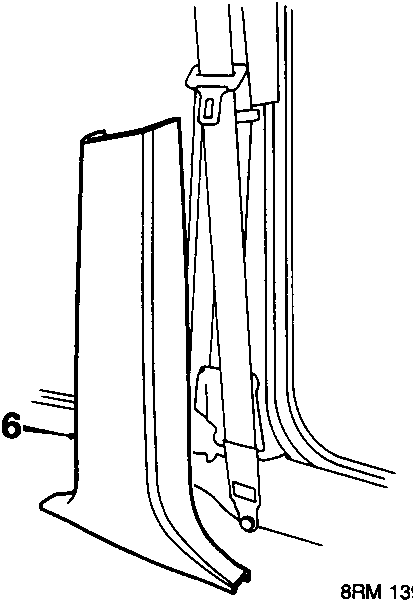

Diagram showing the 'B/C' post lower trim finisher on the driver's side, with a callout pointing to part number 6.
  1. Remove 'B/C' post lower trim finisher, driver's side.
  2. Remove rear window tray.
  3. R.H. steering: Remove rear seat and squab.
    L.H. steering: Remove rear squab.
  4. R.H. steering: Remove sill finisher and carpet retainer, L.H. rear door.
