Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

All Models

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings › All Models
BodyAll Models

Service Repair No. 76.22.15

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

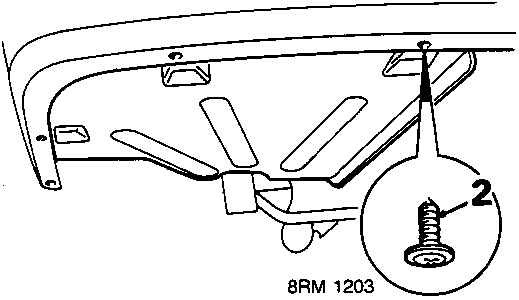

Diagram showing screw (2) securing L.H. closing panel to bumper
  1. Remove 4 screws, L.H. closing panel to bumper.

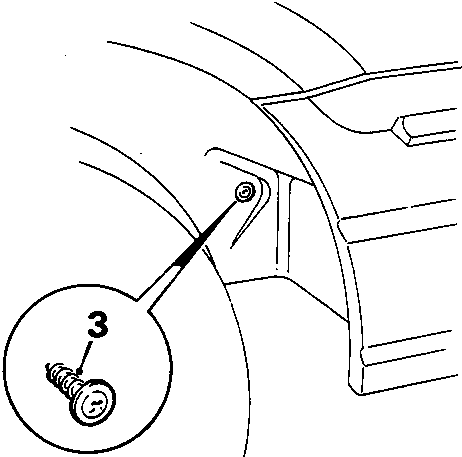

Diagram showing screw (3) securing L.H. wheel arch liner to wheel arch
  1. Remove screw, L.H. wheel arch liner to wheel arch.

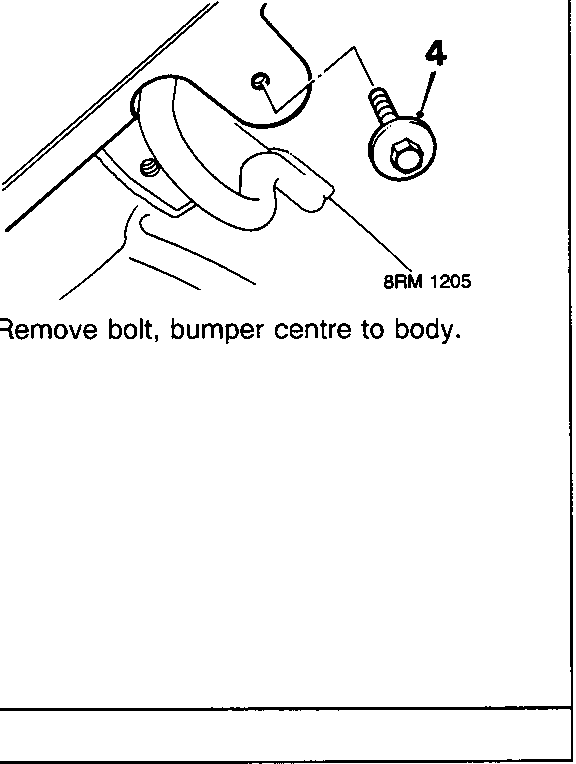

Diagram showing bolt (4) securing bumper centre to body
  1. Remove bolt, bumper centre to body.

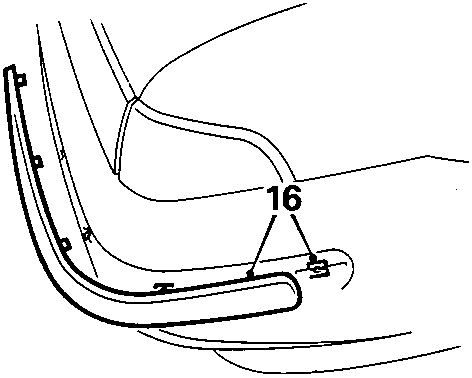

Diagram showing inserts (16) clipped into the rear bumper
  1. Release inserts from 5 clips, remove inserts from bumper.
  2. Remove clips and speed nuts from bumper.

All Models

  1. Transfer components removed to replacement bumper.

Refit

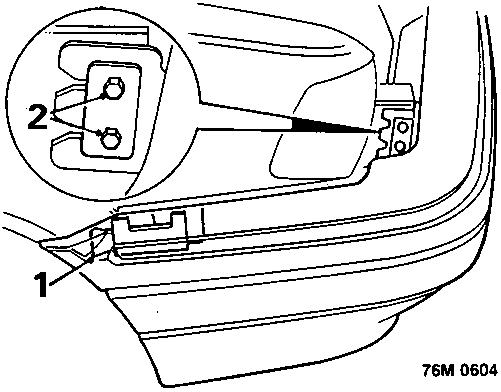

Diagram showing corner slides (1) and crossmember bolts (2) on the rear bumper
  1. With assistance, position bumper and engage corner slides.
  2. Coupe: Fit bumper to crossmember bolts and tighten to 10 Nm.
  3. Not Coupe: Fit bumper to underbelly bolts and tighten to 10 Nm.
  4. Tighten bumper to mounting bracket bolts to 10 Nm.
  5. Coupe: Connect fog lamp harness multiplugs.
  6. Position wheel arch liners and bumper to body, fit and tighten screws.
  7. Not Coupe – Bib spoiler – if fitted: Fit 2 halves of spoiler, fit trim studs, fit and tighten screws.
  8. Remove stand(s) and lower vehicle.
