Exterior fittings › Remove
BodyRemove

Service Repair No. Bonnet lock 76.16.01
Service Repair No. Bonnet release cable 76.16.29

Remove

  1. Open bonnet, mark position of lock.

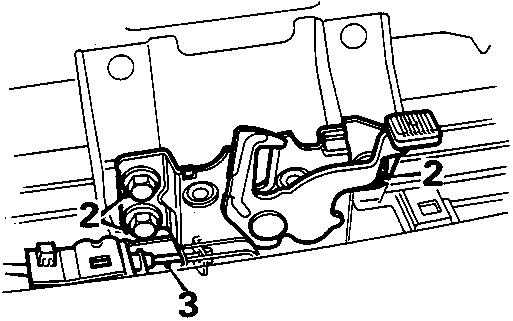

Diagram showing the bonnet lock assembly with callout numbers 2 and 3
  1. Remove 3 bolts, bonnet lock to body.
  2. Disconnect release cable and remove bonnet lock.

Bonnet release cable

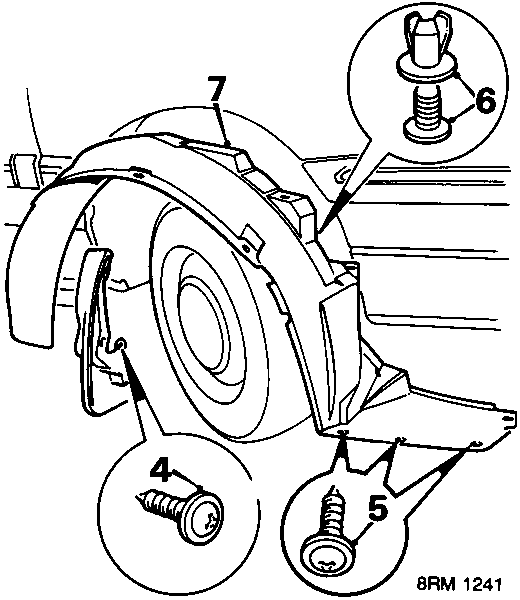

Diagram showing the front wheel arch area with callout numbers 4, 5, 6, and 7
  1. Remove 3 screws and mud flap.
  2. Remove 4 screws, bumper to wheel arch liner.
  3. Release 6 screws and clips, wheel arch liner to body.
  4. Remove front wheel arch liner, driver's side.

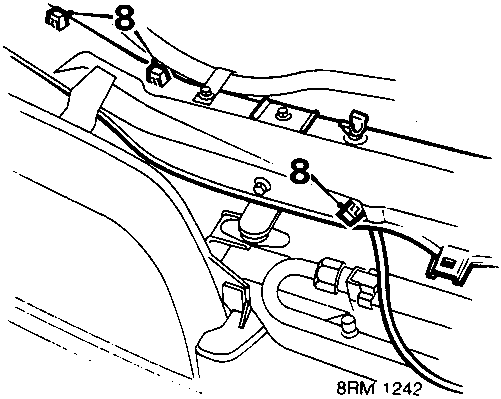

Diagram showing the cable routing on the bonnet with callout number 8
  1. Release 3 clips securing cable to bonnet. lock platform and remove clips from cable.

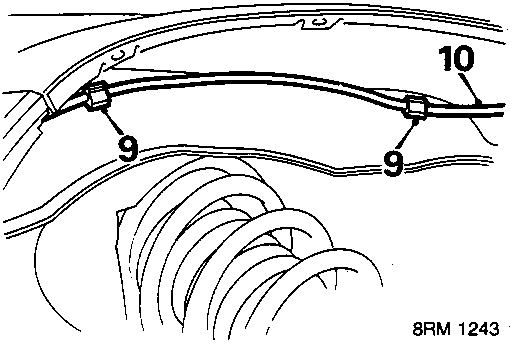

Diagram showing the cable routing under the wing with callout numbers 9 and 10
  1. Release 2 clips securing cable, under wing and remove clips.
  2. Pull cable through to under wing.

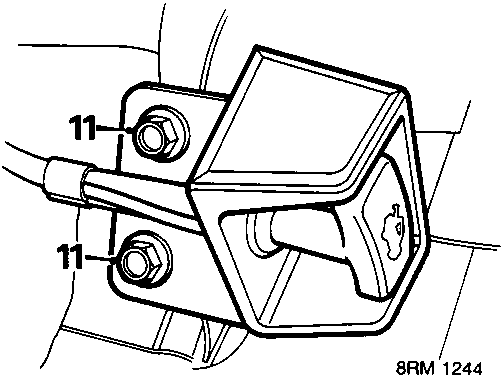

Diagram showing the release handle bracket with callout number 11
  1. Remove 2 bolts, release handle bracket to 'A' post bracket.
