Exterior fittings › Refit
BodyRefit

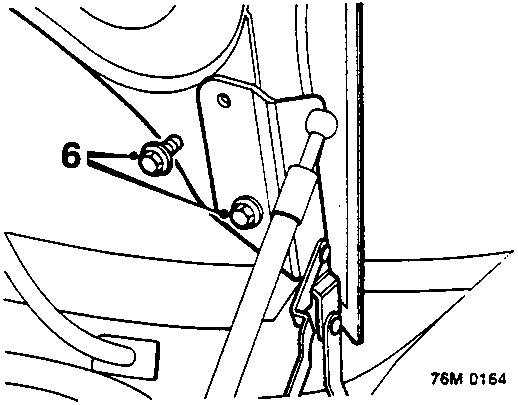

Diagram showing hinge bolts and linkage on the luggage compartment lid, marked with callout number 6.
  1. With assistance, remove hinge bolts and remove lid from vehicle.

Refit

  1. With assistance, position luggage compartment lid and loosely fit hinge bolts.
  2. Tie draw string to end of wiring harness and draw harness through lid.
  3. Secure rubber protection sheath to lid.
  4. Secure wiring clip and connect multiplugs to number plate lamps.
  5. Position luggage compartment lid earth tag and tighten bolt.
  6. Align luggage compartment lid, see Luggage compartment lid alignment.

LUGGAGE COMPARTMENT LATCH – CABRIOLET/COUPE

Service Repair No. 76.19.11

Remove

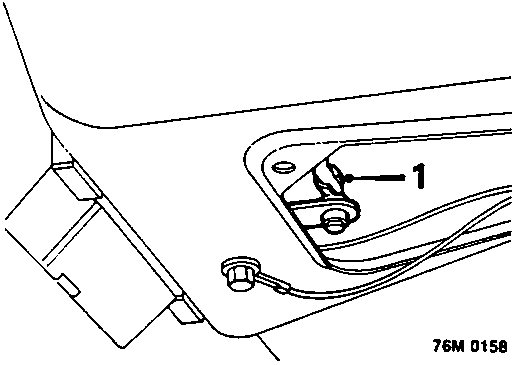

Diagram showing a plastic clip securing an actuator rod to the latch mechanism, marked with callout number 1.
  1. Release plastic clip securing personal lock actuator rod to latch and disengage rod.

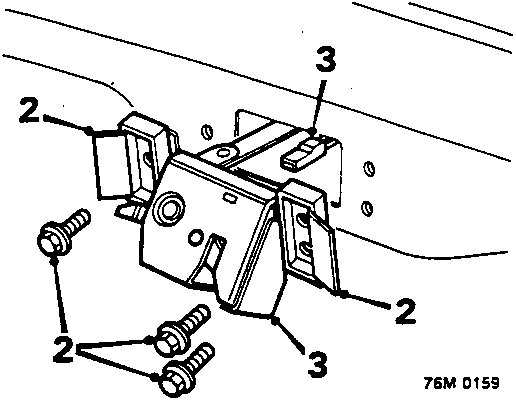

Diagram showing the latch assembly with mounting bolts and a connector, marked with callout numbers 2 and 3.
  1. Lift plastic covers from latch securing bolts and remove bolts.
  2. Release latch from luggage compartment lid, disconnect Lucar connector and remove latch.

Refit

  1. Connect Lucar connector to latch.
  2. Position latch on luggage compartment lid, fit mounting bolts and lightly tighten. Close bolt covers.
  3. Close and then open lid before finally tightening mounting bolts.
  4. Secure plastic covers over bolt heads.
  5. Engage personal lock actuator rod in latch and secure with plastic clip.
