Refit

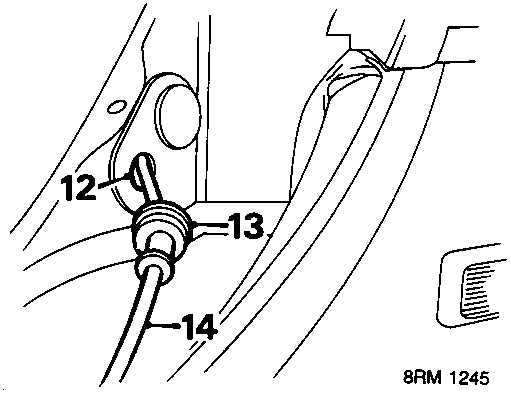

12. Release cable grommet from panel, under wing.
13. Remove grommet from cable.
14. Draw bonnet release cable through into car and remove.

Refit

1. Pass bonnet release cable through 'A' post panel.
2. Align release handle bracket to fascia bracket, tighten bolts to 10 Nm.
3. Fit grommet to cable and secure to panel.
4. Pass cable through wing panel and across bonnet locking platform.
5. Fit clips to cable.
6. Secure cable under wing.
7. Fit clips to cable and secure to bonnet lock platform.
8. Fit front wheel arch liner, driver's side.

Bonnet lock

9. Connect release cable to bonnet lock.
10. Position lock to reference marks, tighten bolts to 10 Nm.
11. Check operation of cable.
12. Close bonnet to safety catch position and check alignment.
13. Adjust position of bonnet lock if required.

UNDERBELLY PANEL

Service Repair No. 76.10.50

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

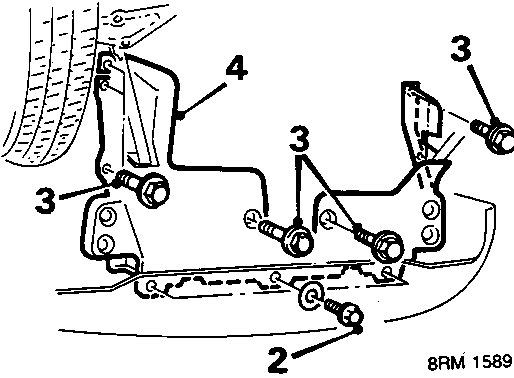

2. Remove 3 bolts, bumper flange to body.
3. Remove 7 bolts, underbelly panel to body.
4. Remove underbelly panel.

Refit

1. Position underbelly panel under bumper flange.
2. Fit bolts to underbelly panel and bumper flange, tighten to 10 Nm.
3. Remove stand(s) and lower vehicle.
