LUGGAGE COMPARTMENT LATCH

Service Repair No. 76.19.11

Remove

  1. Disconnect battery earth lead.
  2. Open luggage compartment.
Apartment lid removal instruction diagram

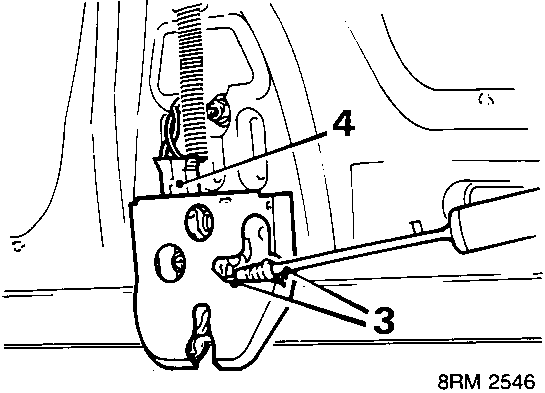

Diagram showing release of outer cable from abutment and inner cable from latch lever, with callout numbers 3 and 4
  1. Release outer cable from abutment and inner cable from latch lever.
  2. Disconnect Lucar from latch.
  3. Release cover from clips on latch and remove cover.

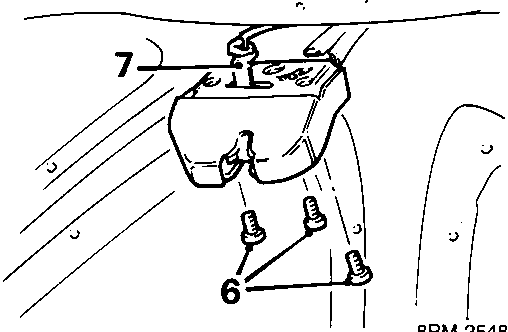

Diagram showing removal of bolts securing latch to luggage compartment lid, with callout numbers 6 and 7
  1. Remove 3 bolts, latch to luggage compartment lid.
  2. Release latch rod from private lock.
  3. Release private lock from latch and remove latch.

Refit

  1. Attach private lock to latch.
  2. Attach latch rod to private lock.
  3. Position latch, fit and tighten bolts to 10 Nm.
  4. Connect Lucar to latch.
  5. Fit cover to latch.
  6. Connect outer cable to abutment and inner cable to latch lever.
  7. Operate luggage compartment release lever, by drivers seat, and check latch for operation.
  8. Connect battery earth lead.
  9. Check striker alignment, see Luggage compartment lid alignment.

LUGGAGE COMPARTMENT LID – CABRIOLET/COUPE

Service Repair No. 76.19.01.99

Remove

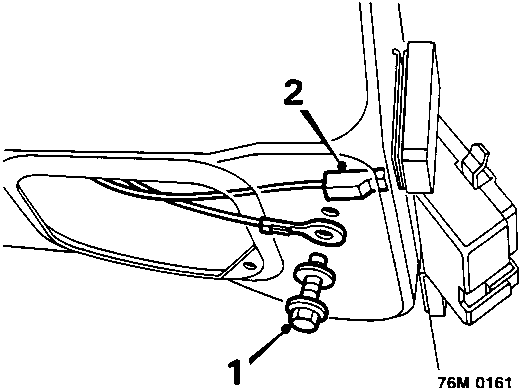

Diagram showing removal of earthing screw adjacent to latch and disconnecting Lucar connector, with callout numbers 1 and 2
  1. Remove earthing screw, adjacent to latch.
  2. Disconnect Lucar connector from latch.

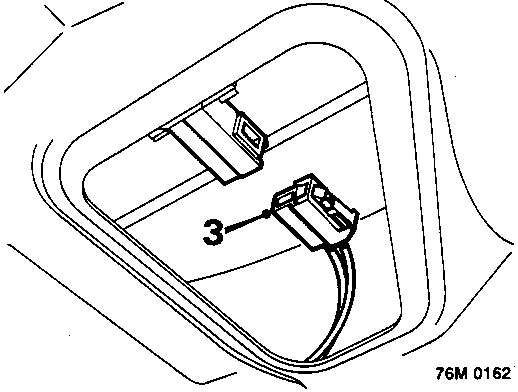

Diagram showing disconnecting multiplug from number plate lamp, with callout number 3
  1. Disconnect multiplug from each number number plate lamp.

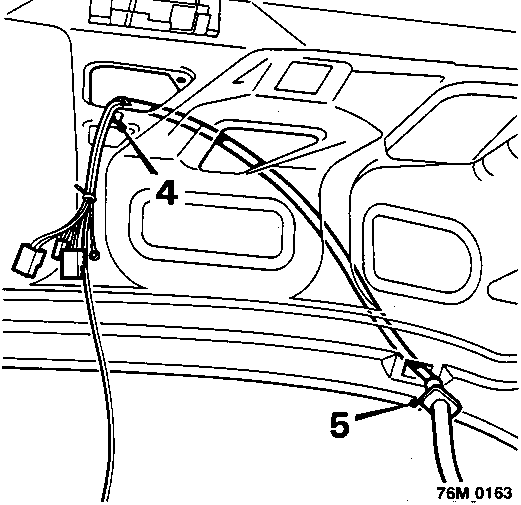

Diagram showing releasing wiring clip and tie draw string to end of lid harness, with callout numbers 4 and 5
  1. Release wiring clip and tie a draw string to end of lid harness.
  2. Disengage harness protection sheath from luggage compartment lid, draw harness through lid and untie draw string.

Note: Leave drawstring in lid to aid routing of harness when lid is refitted.
