Exterior fittings › Remove
BodyRemove

Service Repair No. 76.22.15

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove luggage compartment finisher, see Luggage compartment finisher.
  2. Remove luggage compartment carpet and spare wheel cover board.
  3. Release 2 trim fasteners securing LH and RH rear valance trim.
  4. Remove 4 scrivet screws and fixings securing LH and RH luggage compartment side trim.
  5. Release side trim from body for access.

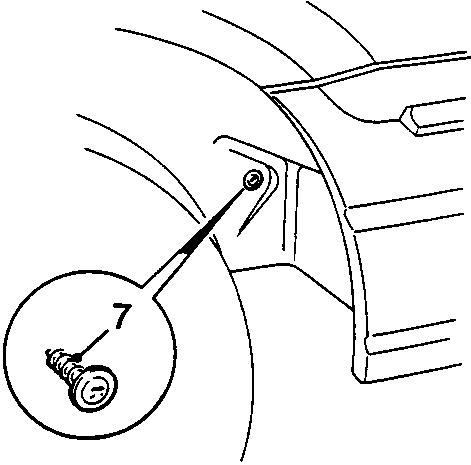

Detail showing screw (7) securing wheel arch liner to bumper end

76M1305

  1. Remove screws securing wheel arch liners to ends of bumper.

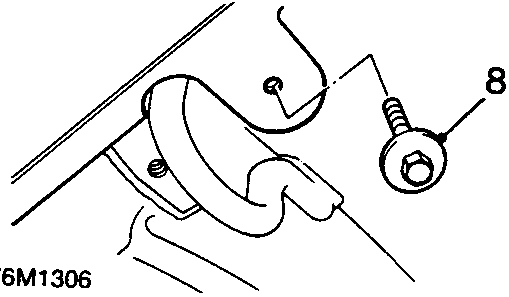

Detail showing bolt (8) securing centre of bumper to body

76M1306

  1. Remove bolt securing centre of bumper to body.

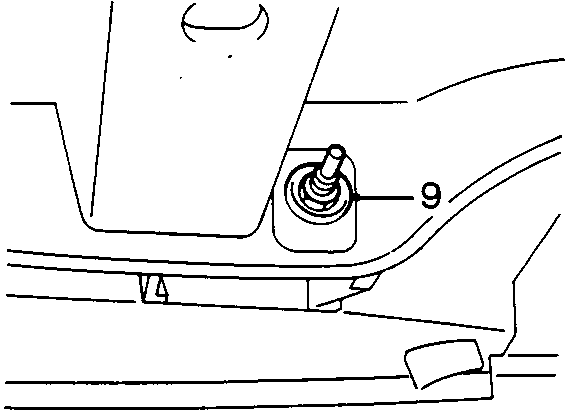

Detail showing nut (9) securing bumper to mounting bracket from underneath vehicle

76M1359

  1. From underneath vehicle, remove 2 nuts securing bumper to mounting brackets.

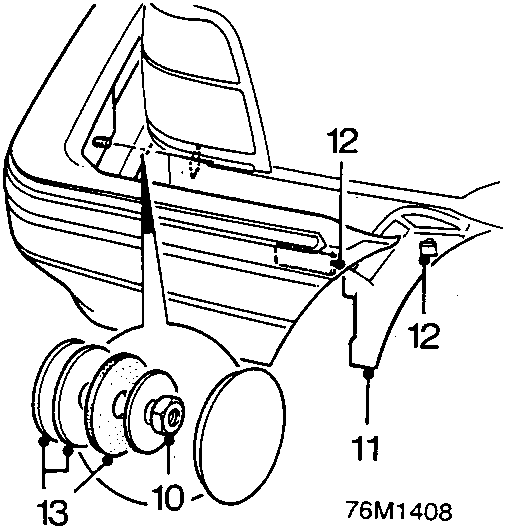

Diagram showing nuts (12), corner slide (11), washer (13), and stud (10) securing bumper assembly

76M1408

  1. From inside luggage compartment, remove 2 nuts securing bumper to mounting brackets.
  2. Use an assistant to release both wheel arch liners from bumper.
  3. Release bumper from corner slides and remove the bumper assembly.
  4. Retrieve 2 washers from studs.

Refit

  1. Position bumper and engage corner slides onto clips.
  2. Fit flat washers and nuts to studs, tighten to 22 Nm.
  3. Secure wheel arch liners to bumper with screws.
  4. Fit bolt securing centre of bumper to body, tighten to 10 Nm.
  5. Position luggage compartment side trim to body and secure with scrivet screws.
  6. Fit trim fasteners to secure side trim to rear panel.
  7. Fit luggage compartment finisher, see Luggage compartment finisher.
