FRONT CONSOLE

Service Repair No. 76.25.04

Remove

Manual

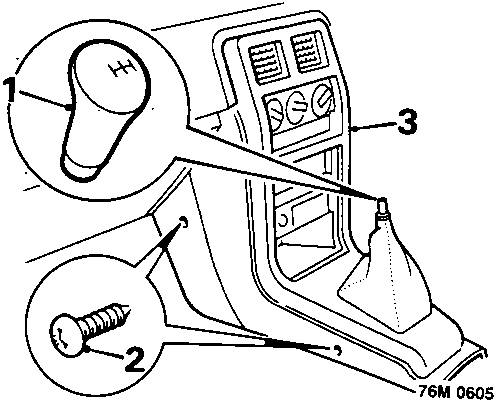

Diagram of front console showing gear lever knob (1), retaining screw (2), and fascia (3).
  1. Remove gear lever knob.

All models

  1. Remove 4 screws, front console to fascia and tunnel bracket
  2. Lift front console away from fascia, release from rear console and withdraw front console assembly.

Do not carry out further dismantling if component is removed for access only

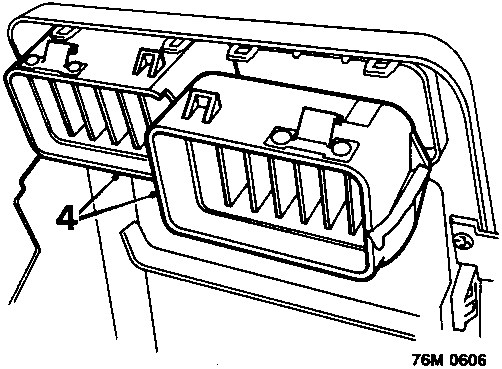

Diagram of front console air ducts (4) being removed from the console assembly.
  1. Remove 2 air ducts from console.
  2. Transfer components removed to new console.

Refit

  1. Position front console to fascia and engage retaining clips.
  2. Fit console retaining screws

Manual

  1. Fit gear lever knob.

REAR CONSOLE

Service Repair No. 76.25.04

Remove

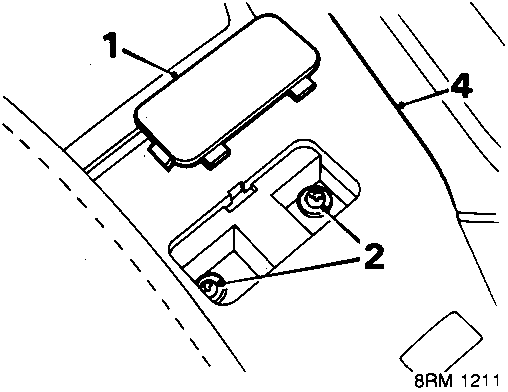

Diagram of rear console showing access cover (1), screws (2), and bracket (4).
  1. Remove access cover.
  2. Remove 2 screws, rear console to bracket.
  3. Release rear console from from rear bracket and front console.
  4. Remove rear console assembly.

Do not carry out further dismantling if component is removed for access only

  1. Remove ash tray from rear console.
  2. Transfer components removed to new console.

Refit

  1. Position rear console and engage rear bracket.
  2. Fit screws, rear console to bracket.
  3. Fit access cover.
