Refit

8RM 1198B

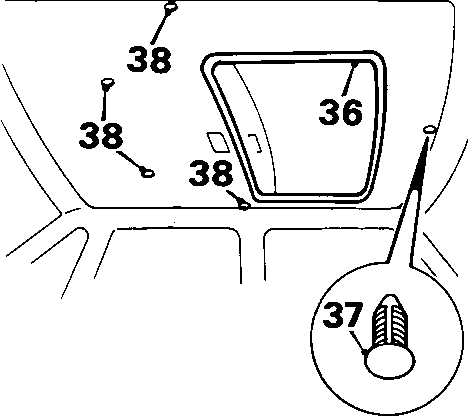

36. Sun roof: Remove finisher from sun roof aperture and release headlining.
37. Remove stud securing headlining at front.
38. Remove 2 studs securing headlining at side. Remove 2 studs where fitted, from rear centre area.
39. Remove headlining through taildoor aperture.

Refit

1. Position headlining and align to roof.
2. Fit 3 or 5 studs to secure headlining to roof panel.
3. Sun roof: Fit headlining to sun roof aperture and fit finisher,
4. Connect the Ultrasonic Disable switch and Ultrasonic sensor connectors.
5. Fit the switch and the sensor to the headlining.
6. Manual sun roof: Fit sun roof handle.
7. Fit headlining finisher to taildoor aperture.
8. Position rear quarter light finishers and secure clips to body.
9. Fit radio rear speaker finishers.
10. Fit seat belt guides, tighten 6 mm bolts to 9 Nm and 8 mm bolt to 32 Nm.
11. Fit seat belt escutcheons.

3 door

12. Fit rear upper trim casing.
13. Fit lower trim casing.
14. Fit rear seat squab, see Rear seat squab – 200 Series.

3 and 5 Door

15. Raise rear seat squabs.
16. Fit taildoor sealing rubber.
17. Fit rear window tray and connect cords.
18. Fit 'A' and 'B/C' post top finishers.
19. Fit door sealing rubbers.
20. Fit screw fastener securing top finishers.
21. 5 door: Refit lower 'B' post finishers.
22. Position seat belt anchorage to 'B' post.
23. Fit and tighten seat belt nuts.
24. Fit front seat head rest.
25. Refit interior lamp, see ELECTRICAL – Repairs.
26. Fit grab handles, tighten screws and fit screw covers.
27. Fit sun visors, clips and blanking plugs.
28. Connect battery earth lead.
